Installing the tailgate lock

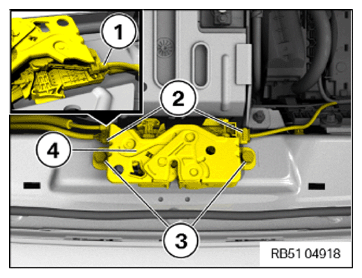

- Position tailgate lock (4).
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Tailgate lock M8x20 screw Tightening torque 19 Nm - Connect connector (2).
- Attach the Bowden cable (1).
Follow-up work
- Install loading EDGE TRIM .
- Install the rear luggage COMPARTMENT WELL .
- Install both bottom d-pillar TRIM PANELS .
- Install the WARNING TRIANGLE .
- Install both flaps in the luggage compartment TRIM PANEL .
- Install the luggage compartment FLOOR COVERING .
