Installing the engine wiring harness for the sensor system 2

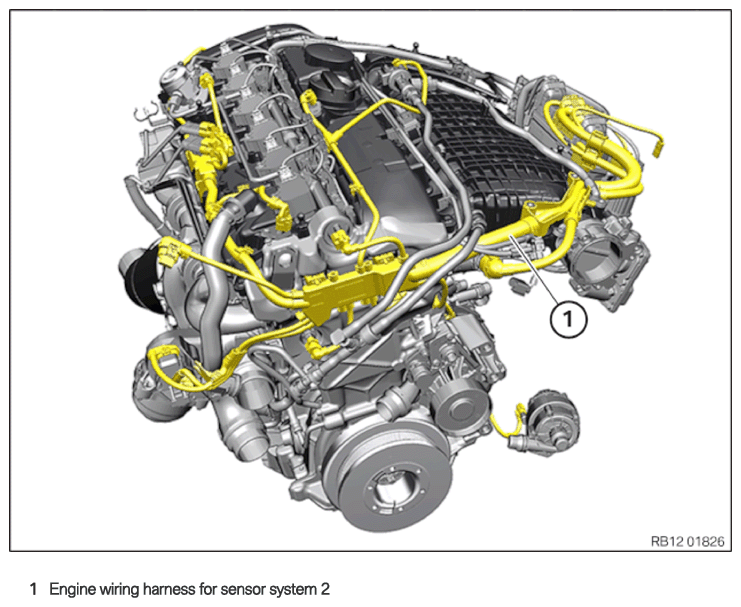

Engine wiring harness for sensor system 2
NOTE:
RISK OF DAMAGE
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
Improper routing of cables and wiring harnesses.
Trapped, crushed or damaged cables may cause short circuits and malfunctions.
- Route all cables without abrasions, do not trap and crush.
- Feed in the engine wiring harness (1) for the sensor system 2 and install it.
- Feed in the engine wiring harness (2) for sensor system 2 and install it.
- Secure the clamps (arrows).
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in and install the engine wiring harness (4) of sensor system 2.
- Make sure that the locks (arrows) engage audibly.
- Secure clamps (3).
- Connect connectors (2) and lock.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in and install the engine wiring harness (3) of sensor system 2.
- Secure the clamps (arrows).
- Connect connectors (2) and lock.
The connector (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in and install the engine wiring harness (2) of sensor system 2.
- Connect connectors (1) and lock.
The connector (1) must engage audibly.
- Secure the clamps (arrows).
- Secure clamps (3).
- Lock clamps (arrows).
The clamps (arrows) must snap-in audibly.
- Tighten down screw (2).
TIGHTENING TORQUES SPECIFICATION
| Front ground cable to cylinder head | ||
| Torx screw M6 | Tightening torque | 5.8 Nm |
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in and install the engine wiring harness (2) of sensor system 2.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Secure the clamps (arrows).
- Mount the cable duct on the intake plenum.
- Tighten down screws (3).TIGHTENING TORQUES SPECIFICATION
Cable duct to intake plenum Tightening torque 4 Nm - Mount the tank ventilation line (2) on the intake plenum.
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATIONTank vent line to intake plenum Oval-head screw Tightening torque 3 Nm - Insert and install the engine wiring harness (4).
- Connect the holder (3) and lock.
- Connect connectors (2) and lock.
The connectors (2) must engage audibly.
- Connect connectors (1) and lock.
The connectors (1) must engage audibly.
- Feed in the cover (1) into the guide and install it.
- Feed the tank ventilation lines (2) into the clamp (arrow) and install.
- Connect and lock the tank vent lines (2).
The tank ventilation lines (2) must snap-in audibly.
- Feed in and install the engine ventilation line (1).
- Connect the engine ventilation line (1) and lock.
The engine ventilation line (1) must snap-in audibly.
Follow-up work
- Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to ATTACHING THE FRONT LEFT WHEEL .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING INTAKE FILTER HOUSING .
- Refer to INSTALLING THE RIGHT FRONT-END STRUT .
- Refer to INSTALLING ACOUSTIC COVER AT REAR .
- Refer to INSTALLING THE COWL UPPER PART .
- Refer to INSTALLING WINDSHIELD PANEL COVER .
- Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
- Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
- Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to INSTALLING THE FRONT HOOD SEAL AT THE REAR .
- Refer to RECONNECTING ALL BATTERY GROUND LEADS .
