Install resonator
- Check the rubber mount (1) is seated correctly.

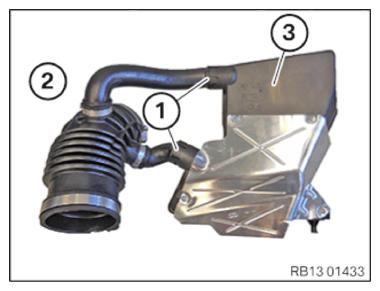

- Insert the resonator (3) on the top clean air pipe (2) and install.
The locks (1) must engage audibly.
- Insert the resonator (3) with the top clean air pipe (2) and install.
The resonator (3) must engage audibly in the rubber mounts.
- Tighten clamp (1).
TIGHTENING TORQUES SPECIFICATION
| Upper clean air pipe to lower clean air pipe | ||
|---|---|---|
| Hose clamp | Tightening torque | 3 Nm |
Follow-up work
- Install intake filter HOUSING .
- Install the right FRONT-END STRUT .
