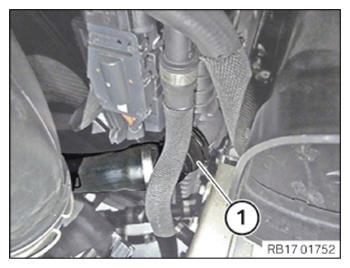

Connecting the coolant line to the radiator

• Connect the coolant line (1) to the radiator and audibly lock it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING RIGHT AIR DUCT .
• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
• Refer to CHECKING THE HIGH-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
