51 47 Floor-Trunk-Engine Compartment-Trim Panel
>>
51 47 490 Removing and installing/replacing underbody protection (front) (X3 M)
>>
Install front underbody protection
Install front underbody protection

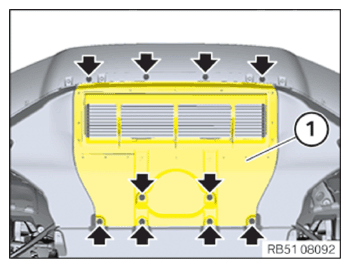

Insert the front underbody protection (1).
Tighten the screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Underbody protection
Hexagon screw
Tightening torque
3 Nm
