51 47 492 Removing and installing/replacing the underbody protection, center (X3 M)
>>
Install the center underbody protection
Install the center underbody protection

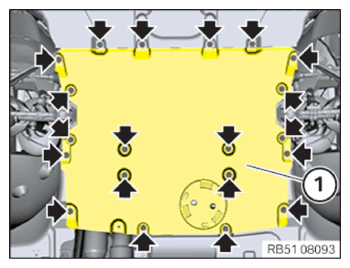

Guide in the center underbody protection (1) to the front.
Tighten the screws (arrows).
TIGHTENING TORQUE SPECIFICATIONS
Underbody protection
Hexagon screw
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
