Removing the intake plenum
WARNING:
Working on 12 V electrical system
.
Risk of short circuits! Risk of fire!
Risk of short circuits! Risk of fire!
- Make sure that there is no charger connected to the jump start terminal in the engine compartment.
- Detach battery ground lead from battery.
- For auxiliary batteries: Detach battery minus cables from all auxiliary batteries.
NOTE:
RISK OF DAMAGE
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
Damage to battery terminal, the safety battery terminal or the intelligent battery sensor (IBS) .
Damaged battery terminals can lead to malfunctions or vehicle electrical system faults .
- Detach battery terminal from battery pole by carefully shifting to and fro. Do not pry off using a tool.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Preliminary work
- Refer to BRINGING FRONT COMPARTMENT LID IN THE SERVICE POSITION .
- Refer to DISCONNECTING THE NEGATIVE BATTERY CABLE OF THE SYSTEM BATTERY .
- Refer to REMOVING THE ENGINE COMPARTMENT COVER PANEL IN THE REAR LEFT AND RIGHT .
- Refer to REMOVING THE TOP RIGHT AND LEFT COVER IN THE ENGINE COMPARTMENT .
- Refer to REMOVING STAND FOR THE HOOD GASKET LEFT AND RIGHT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING THE LEFT AND RIGHT FRONT-END STRUT .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING SUSPENSION STRUT BRACE .
- Refer to REMOVING INTAKE SILENCER HOUSING .
- Refer to REMOVING THE LEFT-HAND AIR DUCT .
- Refer to REMOVING THE COVER PANEL OF THE DME CONTROL UNIT .
- Refer to REMOVING THE DME CONTROL UNIT .
- Refer to REMOVING THE INTEGRATED POWER SUPPLY MODULE (PDM) .
- Refer to REMOVING CONTROL UNIT BRACKET .
- Refer to REMOVING THE FRONT LEFT AND RIGHT WHEELS .
- Refer to PARTIALLY REMOVING BOTH FRONT WHEEL ARCH TRIMS .
- Refer to REMOVING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
- Refer to REMOVING THE FRONT UNDERBODY PROTECTION .
- Refer to REMOVING THE CENTER UNDERBODY PROTECTION .
- Refer to REMOVING THE FRONT RIGHT LOWER WHEEL ARCH COVER .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
- Refer to REMOVING FAN COWL .
- Refer to DRAINING THE COOLANT FOR THE HIGH-TEMPERATURE COOLANT CIRCUIT .
- Refer to DRAINING THE COOLANT FROM THE LOW-TEMPERATURE COOLING SYSTEM .
- Refer to CONNECTING THE COOLANT HOSE TO THE AUXILIARY COOLANT RADIATOR .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
Screws of the intake plenum
NOTE:
RISK OF DAMAGE
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
Damage to wires when disconnecting connectors and plug connections .
Sheared wires can cause a short circuit .
- Do not pull on wires when disconnecting connectors and plug connections.
NOTE:
TECHNICAL INFORMATION
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
Collect and dispose of emerging fluids. Observe country-specific waste disposal regulations.
NOTE:
TECHNICAL INFORMATION
Additional coolant can leakage. Make sure that no coolant enters the intake port of the cylinder head.
Additional coolant can leakage. Make sure that no coolant enters the intake port of the cylinder head.
- Loosen screws (1).
- Loosen screws (1).
- Feed out the charge air crossing (2) and place to one side.
- Unlock the clamp (1) and engage it in this position.
- Unlock charge air duct (1) and detach from the throttle valve (2).
- Unlock plug connection (1) and disconnect.
- Loosen screws (2).
- Thread out holder (3) and set aside.
- Release the clamps (arrows).
- Unlock the locks (arrows).
- Remove the wiring harness section (1) and put to one side.
- Unlock the tank vent line (1) and detach it.NOTE: TECHNICAL INFORMATION
Additional coolant can leakage. Make sure that no coolant enters the intake port of the cylinder head. - Unlock and remove the coolant line (1).
- Release the holder (arrow).
- Put coolant line (1) aside.
- Unlock coolant lines (1) and pull off.
- Unlock and detach the tank vent line (2).
- Unlock and remove the coolant line (1).
- Release the screws in the sequence (7) to (1).
- Guide out the intake plenum (A) and lift it upward.
- Loosen the clamp (arrow).
- Unlock plug connection (2) and disconnect.
- Guide out the intake plenum (1) and remove it.

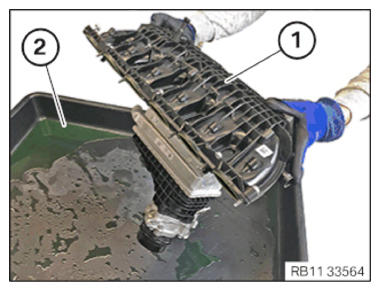

- Empty the remaining coolant (2) from the intake plenum (1).
