Connecting the coolant hose to the auxiliary coolant radiator

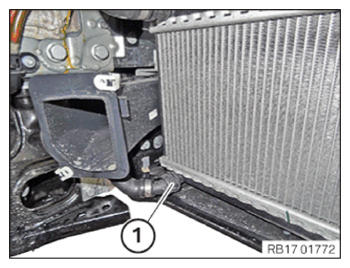

• Connect and lock coolant line (1)  .

  The coolant line (1)  must engage audibly.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE FRONT WHEEL ARCH TRIM .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to CHECKING LOW-TEMPERATURE COOLING SYSTEM FOR WATERTIGHTNESS .
