61 31 134 Removing and installing/replacing USB audio interface connecting socket

Necessary preliminary tasks:

• Refer to REMOVING THE TRIM FROM THE CENTRE STORAGE COMPARTMENT

Replacement only:

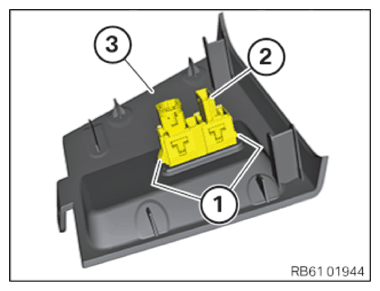

Unlock both latch mechanisms (1) on the connecting socket (2).

Remove the trim (3) from the connecting socket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• INSTALLING THE TRIM ON THE CENTRE STORAGE COMPARTMENT
