Installing the LED in the front storage compartment

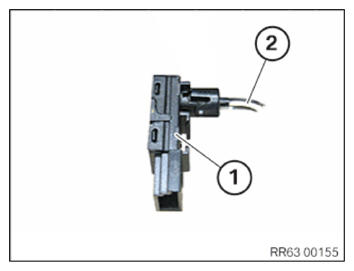

• Carefully install the LED module (1)  on the fiber optic cable (2)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

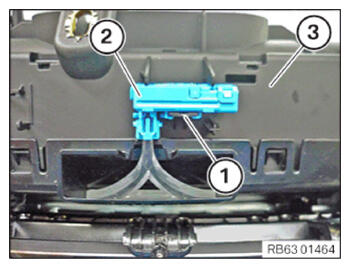

• Position the LED module together with the fiber optic cable (2)  in the storage compartment (3)  and engage it in the detent (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

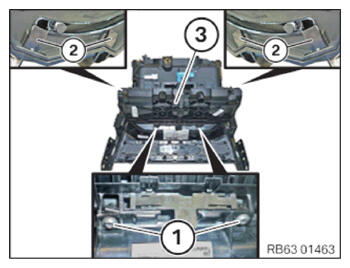

• Position the cover (3)  and clip it into the detents (2)  .
• Tighten down screws (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect plug (1)  .
• Clip in the cable bracket (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE DECORATIVE TRIM ON THE CENTER CONSOLE .
• Refer to INSTALLING THE CENTER OF THE VENTILATION GRILLE WITH THE INTEGRATED AIR CONDITIONING CONTROL PANEL .
• Refer to INSTALLING THE CENTER STACK MODULE .
• Refer to INSTALLING THE WIRELESS CHARGING STORAGE .
• Refer to INSTALLING THE CONNECTING SOCKET OF THE USB AUDIO INTERFACE IN THE STORAGE COMPARTMENT .
• Refer to INSTALLING THE CUP HOLDER .
• Refer to INSTALLING THE CENTRAL INFORMATION DISPLAY (CID) .
• Refer to INSTALLING THE SPEAKER TRIM AT THE DASHBOARD .
• Refer to INSTALLING CENTER ARMREST .
• Refer to INSTALLING THE CENTER ARMREST STORAGE COMPARTMENT .
• Refer to INSTALLING THE REAR CENTER CONSOLE TRIM .
• Refer to ACTIVATING VEHICLE ELECTRICAL SYSTEM .
