Install the connecting socket of the USB audio interface in the storage compartment

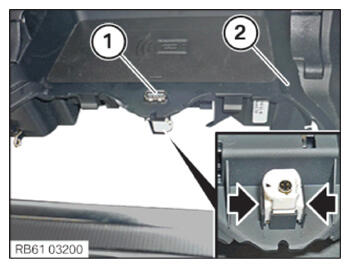

• Position the socket (1)  and push it into the storage compartment (2)  .

  The detents arrowed must engage correctly.

  Courtesy of BMW OF NORTH AMERICA, INC.

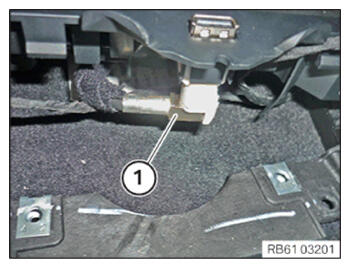

• Connect plug (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE CUP HOLDER .
