Replace bumper panel, front (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
Necessary preliminary tasks:
- Remount middle front RADIATOR GRILLE .
- Remount bumper panel center ORNAMENTAL GRILLE
- Remount bumper panel side ORNAMENTAL GRILLE
- Remount SUPPORT for number plate
- Attach BMW BADGE .
- Remount fog light FIXTURE .
Depending on version:
- Remount FOG LIGHTS and ADJUST .
- Remount HIGH-PRESSURE NOZZLES and hose pipe
- Remount FRONT CENTER LEFT (INSIDE) ULTRASONIC TRANSDUCER , FRONT CENTER RIGHT (INSIDE) ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) , FRONT LEFT (OUTSIDE) ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) , FRONT RIGHT (OUTSIDE) ULTRASONIC TRANSDUCER (PARK DISTANCE CONTROL) , ULTRASONIC SENSORS FOR PARKING MANEUVERING ASSISTANT and wiring harness
- Remount SIDE VIEW CAMERA .
Version with ACC:

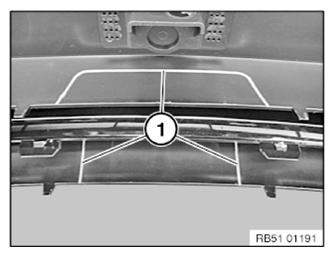

Saw out bumper panel along mark (1).
Execution with PDC:
Observe NOTES for securing components with adhesive tape.
Insert ultrasonic sensor (1) in holder (2).
Clean bonding surface of bumper panel.
Mount holder (2) according to its installation position. Note the label on the holder (2).
Align visible notch (3) with mark (4) and bond holder (2).
Fasten holder (3) on all sides in area (5) with ADHESIVE SET K6 on bumper panel.
