Removing and installing/replacing left fog light (330i GT xDrive, 340i GT xDrive)
WARNING: This page does not describe the selected car, but rather 11 other vehicles, including the 2019 BMW 340i GT xDrive, 2019 BMW 330i xDrive, 2019 BMW 330i GT xDrive, 2018 BMW 340i GT xDrive, and 2018 BMW 330i xDrive. However, it is still accessible from the selected car via links, so may be relevant.
IMPORTANT:
Follow INSTRUCTIONS for handling light bulbs (exterior lights).
Necessary preliminary tasks:
- Partially release front wheel arch, (front section) COVER .

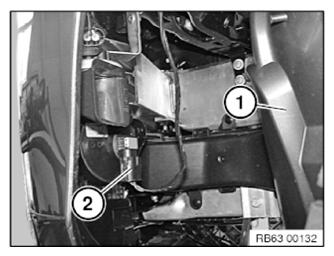

Fold wheel arch cover (1) back.
Unfasten plug connection (2) and disconnect.

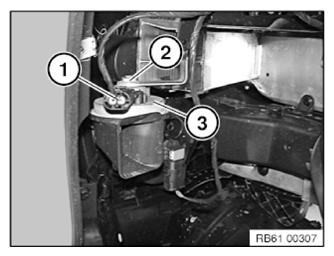

Unfasten plug connection (1) and disconnect.
Release nut (2) and remove fanfare (3).

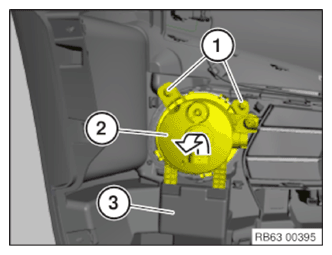

Release screws (1).
Tightening torque 63 12 2AZ .
Remove fog light (2) out of bumper panel (3) in direction of arrow.
Installation note:

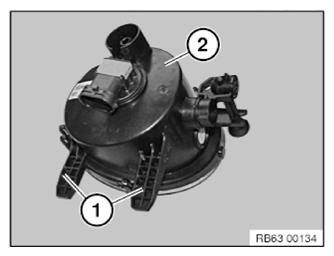

Guides (1) on fog light (2) must not be damaged or missing.
On replacement of fog light or bumper panel at front:
- If necessary, remount BULB .
- Adjust FOG LIGHTS .
