Installing the wiring harness section of DME for the integrated power supply module

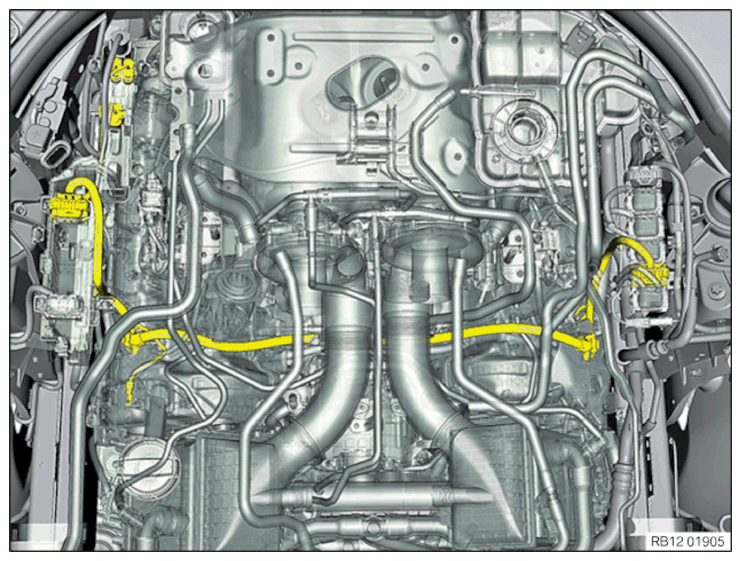

Wiring harness section of DME for the integrated power supply module

Courtesy of BMW OF NORTH AMERICA, INC.

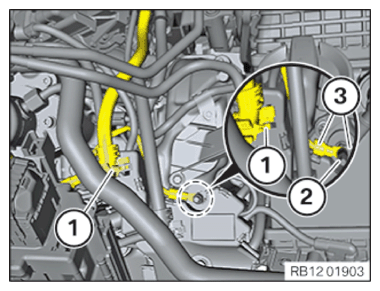

• Feed in and position the wiring harness section of DME for the integrated power supply module.
• Position wiring harness mounting (3)  .
• Fix the wiring harness mounting (3)  downwards in the bracket.

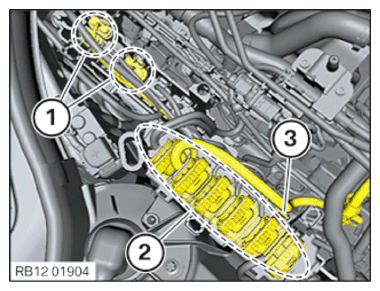

• Connect and lock the connector in the area (2)  on the DME master control unit.

• Connect and lock the connector (1)  on the power distribution module.

  Courtesy of BMW OF NORTH AMERICA, INC.

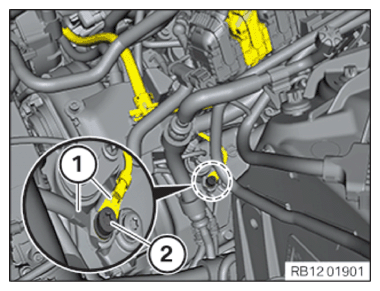

• Position cable heads (1)  .
• Tighten nut (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

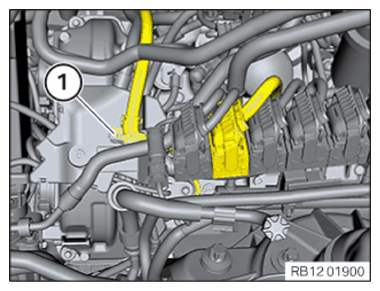

• Connect and lock the wiring harness section of DME for the integrated power supply module at the snap-in lug (1)  .

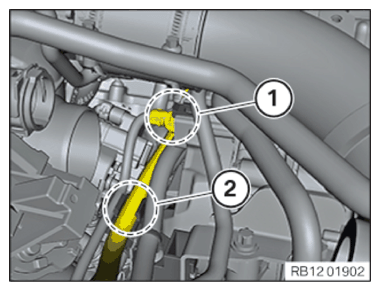

• Unlock and disconnect the plug connection of the alternator (1)  .
• Fix the vehicle wiring harness in the area (2)  in the bracket.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position cable heads (1)  .
• Tighten down screw (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the wiring harness section of DME for the integrated power supply module at the snap-in lug (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING CLEAN AIR PIPE OF CYLINDER BANK 1 .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to CONNECTING BATTERY GROUND LEAD .
