Removing the wiring harness for the sensor system of cylinder bank 1
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE CONTROL UNIT BRACKET FOR CYLINDERS 1 TO 4 .
- Refer to REMOVING MOUNTING FOR DME MASTER CONTROL MODULE SUPPORT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to RELEASING THE RIGHT FRONT-END STRUT .
- Refer to REMOVING FRONT CROSS CONNECTION .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING RIGHT INTAKE SILENCER HOUSING .
- Refer to REMOVING THE REAR TOP CROSS CONNECTION .
- Refer to REMOVING THE FRONT LEFT WHEEL .
- Refer to REMOVING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
- Refer to REMOVING FAN COWL WITH ELECTRIC MOTOR .
- Refer to REMOVING THE STIFFENING PLATE .
- Refer to DETACHING THE WIRING HARNESS OF THE EPS FROM THE FRONT AXLE SUPPORT .
- Refer to LOOSENING THE ANTI-ROLL BAR LINK ON THE LEFT AND RIGHT FROM THE ANTI-ROLL BAR .
- Refer to RELEASING THE ANTI-ROLL BAR FROM THE FRONT AXLE SUPPORT .
- Refer to REMOVING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
- Refer to DRAINING THE COOLANT FROM THE COOLANT PUMPS .
- Refer to REMOVING OIL FILLER NECK .
- Refer to REMOVING RIGHT CHARGE AIR COOLER .
- Refer to REMOVING THE RIGHT THROTTLE BODY .

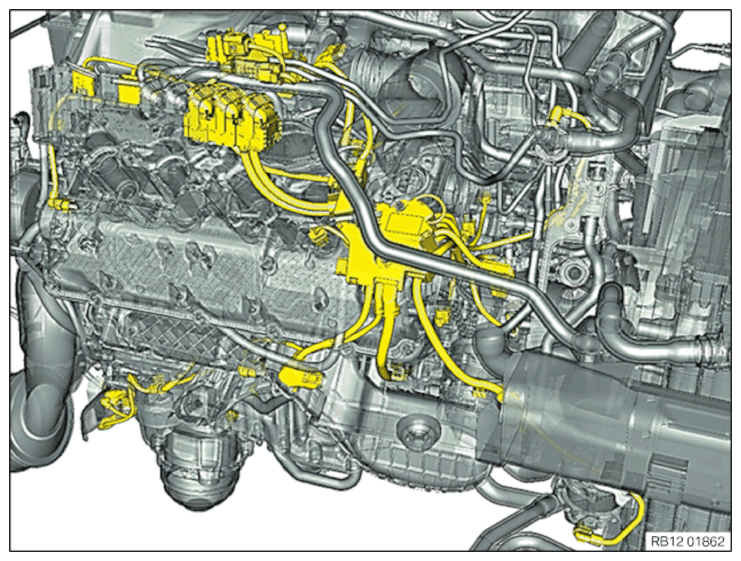

Wiring harness section for sensor system of cylinder bank 1
- Unlock and disconnect plug connections (1).
- Loosen the cable clip (2).
- Release wiring harness section (1) from holder (2).
- Unlock plug connection (1) and disconnect.
- Unlock snap-in lug (3) with a commercially available screwdriver (2), and push upwards out of guide.
- Pull plug connection (4) downward.
- Unlock plug connection (4) and disconnect.
- Loosen screws (1).
- Remove the heat shield (2) downwards.
- Unlock and disconnect the plug connection (1) of the crankshaft sensor.
- Unlock and disconnect the plug connection (1) of the throttle valve of cylinder bank 1.
- Unlock and disconnect plug connections (1).
- Loosen screws (2).
- Release plug connection (3) from the wiring harness mounting.
- Unlock plug connection (3) and disconnect.
- Unlock and disconnect the plug connection (1) on the pressure sensor for intake air pressure.
- Unlock and disconnect the plug connection (2) on the Valvetronic servomotor.
- Release the wiring harness mounting (3).
- Unlock the plug connection (1) on the exhaust camshaft sensor of cylinder bank 1 and detach.
- Unlock the plug connection (2) on the intake camshaft sensor of cylinder bank 1 and detach.
- Release the wiring harness section for the Digital Motor Electronics (DME) (3).
- Release wiring harness for the sensor system of cylinder bank 2 (4).
- Loosen screw (5).
- Loosen nut (7).
- Place cable heads to one side.
- Loosen screw (6).
- Guide the alternator cable (8) out of the holder.
- Loosen screws (1).
- Detach the coolant ventilation line in the area (2) and set aside.
- Unlock the plug connection (3) of the Lambda oxygen sensor of cylinder bank 1 and disconnect.
- Unlock the plug connection (4) of the oxygen sensor monitor of cylinder bank 1 and disconnect.
- Unlock the plug connection (1) on the rail pressure sensor and disconnect.
- Release the wiring harness mountings (2).
- Unlock the plug connection (3) of the high pressure pump of cylinder bank 1 and disconnect.
- Release wiring harness for the sensor system of cylinder bank 1 from the wiring harness mounting (4).
- Unlock the plug connection (1) on the exhaust turbocharger and disconnect.
- Unlock the plug connection (2) on the alternator and disconnect.
- Unlock the plug connection (1) on the electronic coolant pump of the low-temperature coolant circuit and disconnect.
- Release the wiring harness mounting (2).
- Unlock the plug connection (1) on the VANOS solenoid actuator of the intake camshaft of cylinder bank 1 and disconnect.
- Unlock the plug connection (2) on the VANOS solenoid actuator of the exhaust camshaft of cylinder bank 1 and disconnect.
- Unlock the plug connection (3) of the tank vent line of cylinder bank 1 and disconnect.
- Unlock the plug connection (4) on the differential pressure sensor and disconnect.
- Unlock and disconnect the plug connection (5) on the temperature sensor.
- Unlock the plug connection (6) on the thermostat housing and disconnect.
- Unlock the plug connection (7) on the electronic coolant pump of the exhaust turbocharger and disconnect.
- Release the wiring harness mounting (8).
- Guide out the wiring harness for the sensor system of the cylinder bank 1 and remove it.
