Installing the positive battery cable from the remote positive terminal to the starter

• Insert and position the positive battery cable (3).
• Replace the cable ties (2).

  Parts:  Cable tie

• Tighten the cable tie.
• Cut off the protruding end of the cable ties.

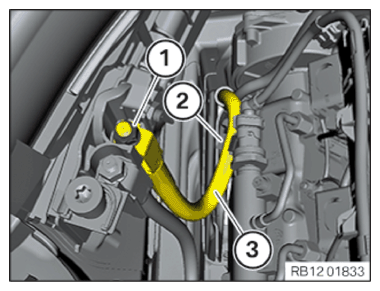

• Engage the positive battery cable (3) on the holder (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect the plug connection (1) on the solenoid switch and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

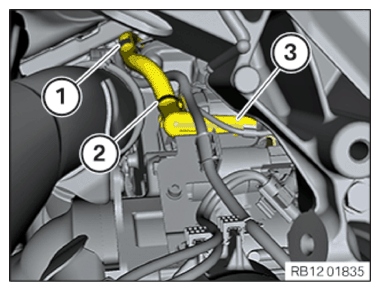

• Feed in the positive battery cable (3) on the stud bolt of the remote positive terminal.

• Engage the positive battery cable (3) on the holder (2).
• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the cover (1) in a downwards direction.
• Check the detents (2) are seated correctly.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
• Refer to INSTALLING ACOUSTIC COVER .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to CONNECTING BATTERY GROUND LEAD .
