Remove the exhaust camshaft sensor of cylinder bank 2
WARNING:
Hot surfaces
.
Risk of burning!
Risk of burning!
- Perform all work only on components that have cooled down.
NOTE:
TECHNICAL INFORMATION
Driving without the strut brace/front-end strut or tension strut is not permitted.
Driving without the strut brace/front-end strut or tension strut is not permitted.
Preliminary work
- Refer to DISCONNECTING ALL BATTERY GROUND LEADS .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
- Refer to RELEASING LEFT FRONT-END STRUT .
- Refer to REMOVING LEFT INTAKE SILENCER HOUSING .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
- Refer to REMOVING IGNITION COIL OF CYLINDER BANK 2 .
- Refer to DISCONNECTING PLUG CONNECTIONS OF THE INJECTORS OF CYLINDER BANK 2 .
- Refer to PARTIALLY DISENGAGE THE FUEL SUPPLY LINE .

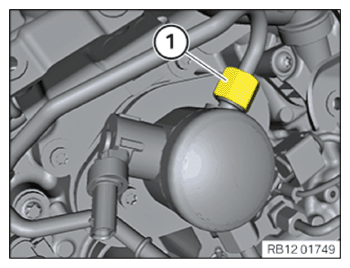

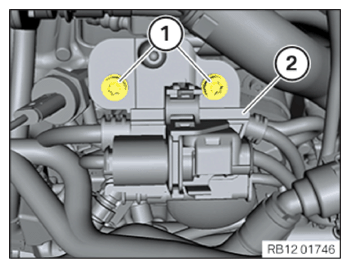

- Release the bolt (1) by one rotation.

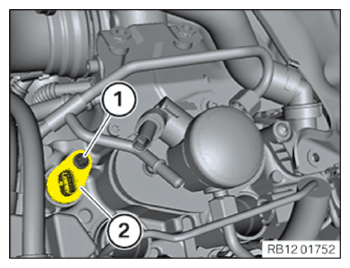

- Press the coolant line (2) to the side.

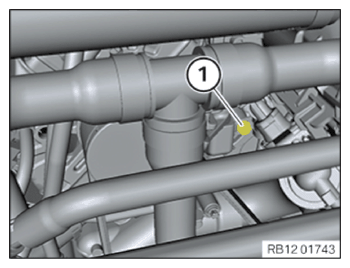

- Loosen screw (1).

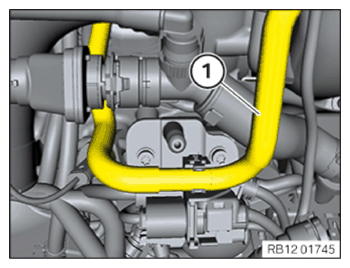

- Unclip the line (1) and set it aside.

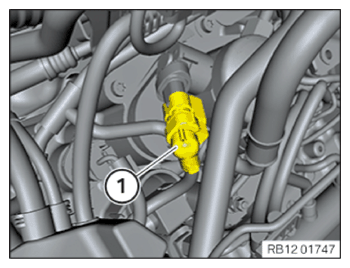

- Loosen screws (1).
WARNING:
Working on fuel system
.
Risk of fire! Danger of explosion!
Risk of fire! Danger of explosion!
- When working on the fuel system, make sure the workstation has sufficient ventilation, e.g., by means of extraction.
- Tightly seal off open lines and connections; collect any leakage fuel directly at the point of exit.
- No fire, sparks, open flames or smoking.
NOTE:
TECHNICAL INFORMATION
Wear protective gloves.
Wear protective gloves.
NOTE:
TECHNICAL INFORMATION
Wear safety goggles.
Wear safety goggles.

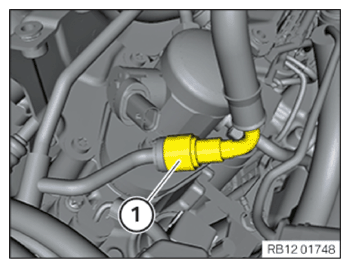

- Unlock and disconnect the fuel line.

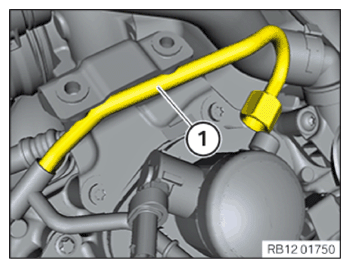

- Loosen union nut (1).
- Place the fuel supply line (1) to one side.

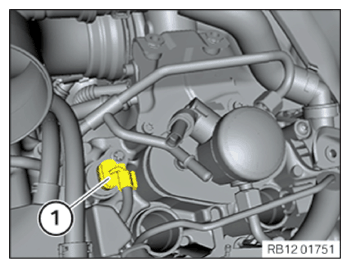

- Unlock plug connection (1) and disconnect.
- Loosen screw (1).
- Remove the exhaust camshaft sensor of cylinder bank 2 (2).
