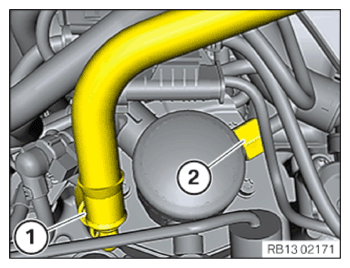

Installing fuel delivery line

• Feed in the fuel supply line.
• Tighten union nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Position wiring harness.
• Engage cable clip (2).
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the nut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

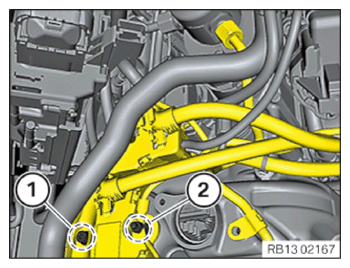

• Tighten down screw (1).

• Tighten union nut (2).

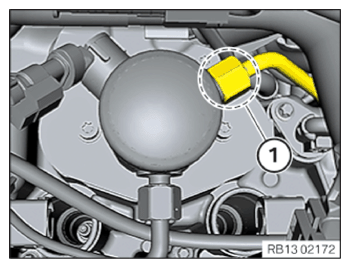

• Connect and lock the fuel line (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

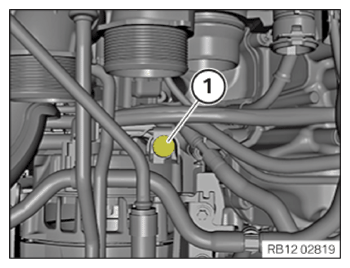

• Tighten nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Install the cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

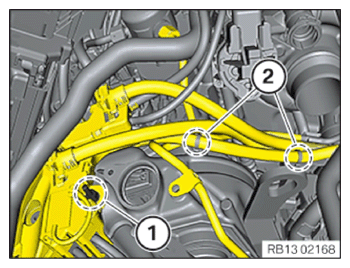

• Position tank vent line.
• Engage holder (2) of the tank vent line.
• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

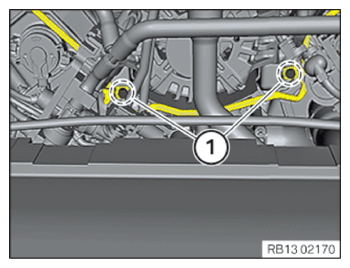

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

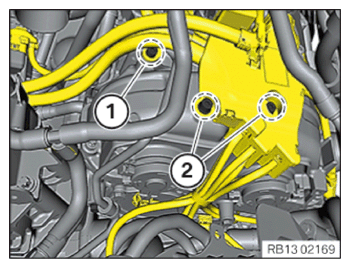

• Position wiring harness.

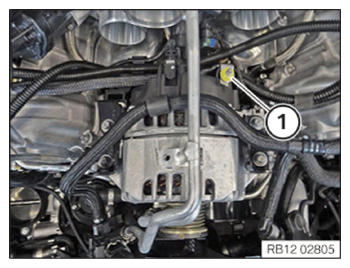

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).

Follow-up work

• Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 1 AND 2 .
• Refer to INSTALLING THE IGNITION COILS OF CYLINDERS 5 AND 6 .
• Installing holder with the wiring harness for the sensor system of cylinder bank 2.
  • Position the holder with the wiring harness for the sensor system.
  • Tighten screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Holder of sensor system
  M6x16 screw	Tightening torque	10 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Connect plug connection (3) and lock.
  • Engage the coolant ventilation line in area (1) at the holder.

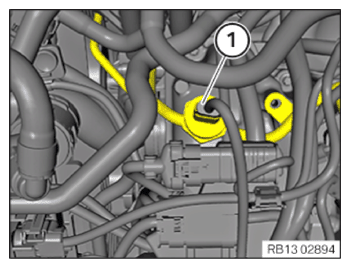

  • Tighten nut (1).
• Refer to INSTALLING THE HOLDER WITH THE VEHICLE WIRING HARNESS FOR THE SENSOR SYSTEM OF CYLINDER BANK 1 .
• Refer to INSTALLING THE RIGHT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING THE LEFT-HAND CHARGE AIR COOLER .
• Refer to INSTALLING OIL FILLER NECK .
• Refer to CLOSING THE COOLANT PUMPS .
• Refer to FILLING THE LOW-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
• Refer to VENTING THE LOW-TEMPERATURE COOLING SYSTEM .
• Refer to INSTALLING THE WHEEL ARCH COVER ON THE FRONT LEFT AND BOTTOM RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING DRIVE BELT .
• Refer to INSTALLING FAN COWL WITH ELECTRIC MOTOR .
• Refer to INSTALLING THE REAR TOP CROSS CONNECTION .
• Refer to INSTALLING THE CLEAN AIR PIPE OF CYLINDER BANK 2 .
• Refer to INSTALLING RIGHT INTAKE SILENCER HOUSING .
• Refer to INSTALLING LEFT INTAKE SILENCER HOUSING .
• Refer to INSTALLING FRONT CROSS CONNECTION .
• Refer to TIGHTENING THE LEFT FRONT-END STRUT .
• Refer to TIGHTENING THE FRONT-END STRUT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE RIGHT .
• Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT ON THE LEFT .
• Refer to INSTALLING COOLANT EXPANSION TANK .
• Refer to INSTALLING HOLDER OF THE DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
• Installing the cover panel of the master DME control unit.

  Courtesy of BMW OF NORTH AMERICA, INC.

  • Position the cover of the master DME control unit (1)
  • Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
• Refer to INSTALLING THE COVER PANEL OF THE SLAVE DME CONTROL UNIT .
