Install rail of cylinder bank 1

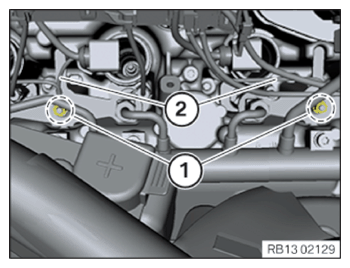

- Position high pressure rail.
- Fit bolts (1) to system by hand.
- Fit bolts (1) to system by hand.

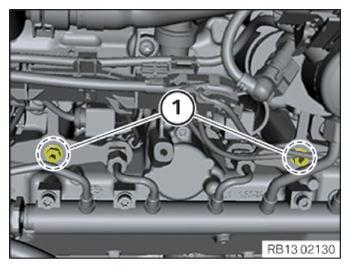

- Tighten nut (2) on the high pressure pump with the special tool 0 491 277 (13 5 020) .
TIGHTENING TORQUES SPECIFICATION
| Fuel supply line/rail to high pressure pump | ||
| Nut | tightening torque | 30 Nm |

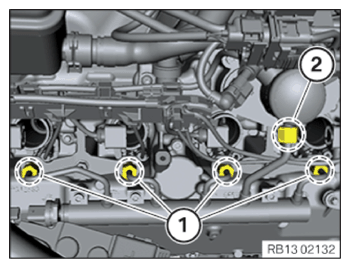

- Tighten nuts (1) on the injectors with the special tool 0 495 908 (37 1 150) .
TIGHTENING TORQUES SPECIFICATION
| High-pressure rail to injectors | ||
| Nuts | Tightening torque | 23 Nm |

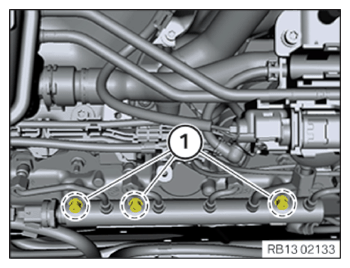

- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Rail to cylinder head cover | ||
| M6x25 screw | Tightening torque | 10 Nm |
- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Hold-down device to cylinder head cover | ||
| screw | Tightening torque | 13 Nm |
- Position ground cable (2).
- Tighten nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Ground cable to hold-down device | ||
| Nuts | Tightening torque | 5.5 Nm |

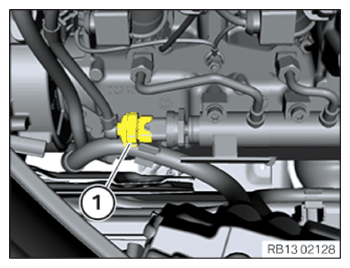

- Connect connectors (1) and lock.
Follow-up work
- Refer to INSTALLING IGNITION COILS OF CYLINDER BANK 1 .
- Refer to INSTALLING CONTROL UNIT HOLDER FOR CYLINDERS 1 TO 4 .
- Installing the cover panel of the master DME control unit.
- Position the cover of the master DME control unit (1)
- Engage the cover panel of the master DME control unit (1) downwards with the clamps (2) and the guide pins (3) in the carrier plate of the DME.
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING BATTERY GROUND LEAD .
