Removing engine ventilation line of cylinder bank 2
Preliminary work
- Refer to REMOVING THE COVER PANEL OF THE MASTER DME CONTROL UNIT .
- Refer to REMOVING THE COVER PANEL OF THE SLAVE DME CONTROL DEVICE .
- Refer to REMOVING THE ACOUSTIC COVER .
- Refer to PARTIALLY REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 1 TO 4 .
- Refer to PARTIALLY REMOVING THE LAMBDA OXYGEN SENSOR FOR THE CYLINDERS 5 TO 8 .
- Refer to REMOVING HOLDER OF DME CONTROL UNIT FOR CYLINDERS 5 TO 8 .
- Refer to REMOVING COOLANT EXPANSION TANK .
- Refer to REMOVAL OF EXPANSION TANK FOR CHARGE AIR COOLERS (PARTIAL REMOVAL) .
- Removing conduit from bank 1.
- Loosen screws (1).
- Slide conduit (2) downwards.
- Refer to REMOVING THE WIRING HARNESS FROM THE CYLINDER BANK 2 .
- Refer to REMOVING THE RETAINING BRIDGE IN AN EQUIPMENT SPECIFICATION WITH A GASOLINE PARTICULATE FILTER .
- Refer to PARTIALLY REMOVING TANK VENTILATION LINE OF CYLINDER BANK 2 .
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.

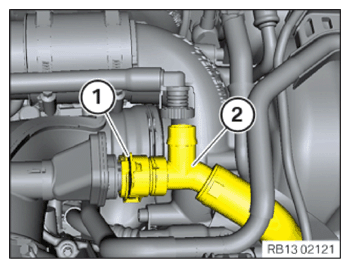

- Unlock the retaining clip (1) upwards using a suitable screwdriver.
- Slide engine ventilation line (2) downwards to the side.

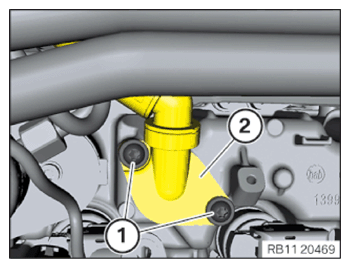

- Loosen screws (1).
- Guide out engine ventilation line (2) to the top.
