Installing the oil-level sensor

Prepare the oil-level sensor

• Replace sealing ring (1)  .

  Parts:  Sealing ring

Courtesy of BMW OF NORTH AMERICA, INC.

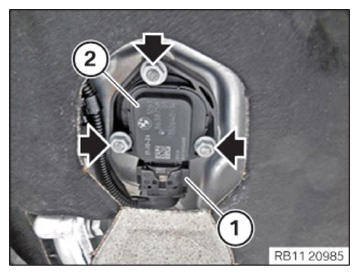

• Insert and install the oil-level sensor (2)  .
• Tighten the nuts (arrows).

Courtesy of BMW OF NORTH AMERICA, INC.

• Connect and lock the connector (1)  .

  The connector (1)  must engage audibly.

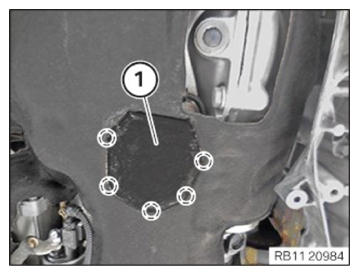

• Feed in the cover (1)  in the marked  area and install.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to RAISING THE FRONT SUBFRAME .
• Refer to IF INSTALLED: INSTALLING THE SILENCER OF THE PARKED-CAR HEATING .
• Refer to ATTACHING THE ANTI-ROLL BAR LINK ON THE ANTI-ROLL BAR AT LEFT AND RIGHT .
• Refer to ATTACHING THE LINE CONNECTION TO THE RIDE HEIGHT SENSOR .
• Refer to SECURING THE WIRING HARNESS FOR THE EPS ON THE FRONT AXLE SUPPORT .
• Refer to SECURING THE STEERING SHAFT AT THE BOTTOM ON THE STEERING GEAR .
• Refer to INSTALLING THE LEFT AND RIGHT CRASH LEVER .
• Refer to INSTALLING REAR SECTION OF THE FRONT RIGHT WHEEL ARCH COVER .
• Refer to PARTIALLY INSTALLING THE AIR DUCT FOR THE BRAKE ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE FRONT SECTION OF THE FRONT WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LOWER WHEEL ARCH COVER ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE STIFFENING PLATE .
• Refer to INSTALLING THE TORSION STRUT LEFT AND RIGHT .
• Refer to INSTALLING UNDERBODY PROTECTION AT SIDE RIGHT AND LEFT .
• Refer to INSTALLING THE COVER OF THE STEERING ASSEMBLY ON THE LEFT AND RIGHT .
• Refer to INSTALLING UNDERBODY PROTECTION AT REAR .
• Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
• Refer to INSTALLING FRONT UNDERBODY PROTECTION .
• Refer to INSTALLING THE FRONT RIGHT WHEEL .
• Refer to TAKING ENGINE OUT OF INSTALLATION ORIENTATION .
• Refer to INSTALLING THE REAR SECTION OF THE FRONT WHEEL ARCH COVER .
• Refer to ATTACHING THE FRONT LEFT WHEEL .
• Refer to INSTALLING FUEL DELIVERY LINE .
• Refer to INSTALLING ALL IGNITION COILS .
• Refer to INSTALLING ACOUSTIC COVER AT REAR .
• Refer to INSTALLING THE CENTER COWL UPPER PART .
• Refer to INSTALLING WINDSHIELD PANEL COVER .
• Refer to INSTALLING LEFT AND RIGHT WIPER ARM .
• Refer to RECONNECTING ALL BATTERY GROUND LEADS .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
• Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
• Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
• Refer to INSTALLING THE REAR HOOD SEAL .
• Refer to INSTALLING THE SIDE PANEL SEAL .
• Refer to INSTALLING THE LATERAL HOOD SEALS .
• Refer to INSTALLING INTAKE FILTER HOUSING .
• Refer to INSTALLING THE RIGHT FRONT-END STRUT .
• Refer to FILLING ENGINE OIL .
• Refer to OPENING THE OIL FILLER CAP .
• Refer to CHECKING ENGINE OIL LEVEL .
• Refer to INSTALLING ACOUSTIC COVER .
• Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
