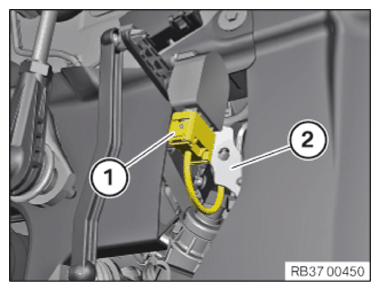

Attaching the line connection to the ride height sensor
Attaching the line connection to the ride height sensor
Position the line.
Clip the line into the bracket
(2)
.
Connect connectors
(1)
and lock.
