Install rear power electric windows

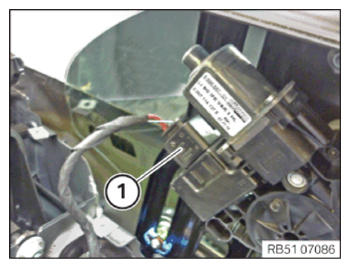

• Install the power electric windows and connect the connector (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

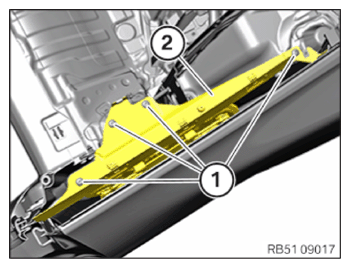

• Feed power windows (2) into the side section.

  Correctly feed the lower screw into the bracket.

• Apply the screws (1) until the power electric windows can still be shifted.

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjusting the rear window shaft dimension

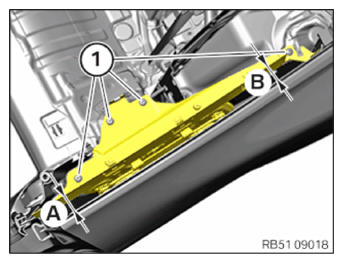

• Adjust the window cavity dimension (A) and (B) by shifting the power electric windows.

  Measure the window cavity dimension (A) and (B) between the angle bracket and the inner edge of the side section.

  Dimension A (front)	Dimension B (rear)
  32.8 mm	32.8 mm

• Tighten screws (1) on the rear power electric windows.
  TIGHTENING TORQUE SPECIFICATIONS



  Rear power window (angle bracket above)
  Oval-head screw	Tightening torque	9.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

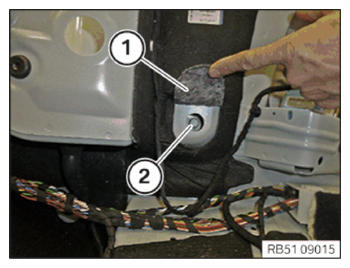

• Install sound insulation (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (2).
  TIGHTENING TORQUE SPECIFICATIONS



  Rear power window (screw below)
  Hexagon screw	Tightening torque	12 Nm

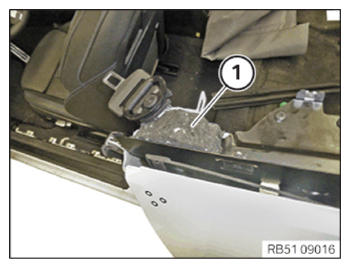

• Fold down the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING THE REAR INNER WINDOW CHANNEL STRIP .
• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
• Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
