Attaching the rear inner window channel strip

Precondition

Side window glass is open.

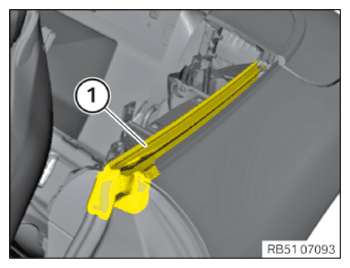

• Position the window channel strip (1)  and feed in at front on the side section and edge protection.
• Press down the window channel strip (1)  on its entire length.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING REAR TRIM PANEL .
• Refer to INSTALLING THE UPPER TRIM PANEL ON ROLLOVER PROTECTION SYSTEM .
• Refer to INSTALLING THE REAR LEFT AND RIGHT HEAD RESTRAINT GUIDES .
• Refer to INSTALLING REAR LEFT AND RIGHT HEAD RESTRAINTS .
• Refer to REMOVING REAR SEAT BACKREST .
• Refer to INSTALLING THE LEFT AND RIGHT BACKREST SIDE SECTION .
• Refer to INSTALLING THE REAR SEAT .
• Refer to INSTALLING THE INNER DOOR SILL COVER STRIP .
• Refer to ATTACHING THE REAR OUTER WINDOW RECESS FINISHER STRIP .
