Remove engine bridge

Lower the engine by 10 mm by turning the special tool 2 361 506 (00 6 103) (1) using the special tool 0 490 567 (11 0 020) .
The fixtures of the engine mounts must be located in the engine support brackets.

Courtesy of BMW OF NORTH AMERICA, INC.
Prepare tools:
1. Torx socket E12
2. Reduce from 1/2 inch to 3/8 inch
3. Groove 12.5°
4. Short extension of 1/2 inch
5. 1/2" reversible ratchet
Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) of the left-hand engine mount using the prepared tool.

TIGHTENING TORQUE SPECIFICATIONS

Engine mount to engine support bracket
M12	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screw (1) of the right engine mount with a commercially available tool.

TIGHTENING TORQUE SPECIFICATIONS

Engine mount to engine support bracket
M12	tightening torque	100 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Installing both rear sections of the front wheel arch covers

NOTE: The operations shown only for one side must be carried out on both sides.

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

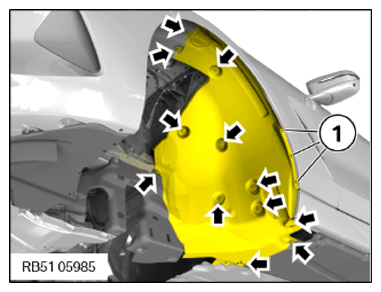

Insert the rear section of the front wheel arch cover.

Tighten screws (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Wheel arch cover (screws)
Thermoplastic hexagon screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Secure expanding rivet (1).

Install the cover of the steering assembly on the left and right

NOTE: Description is for left component only. Procedure on the right side is identical.

Install the cover of the steering assembly

NOTE: To provide a better overview: Schematic diagram with partially hidden components.

Insert the cover (1).

Tighten all bolts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Cover, steering unit
screw	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Install the front left and right wheels

NOTE: Perform the steps on the left and right side.

Mounting the wheel

NOTE: TECHNICAL INFORMATION
The contact surface between the brake disc and the wheel rim must be clean and free from oil and grease. There is otherwise a risk of the wheel becoming loose at a later time.

Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011 .
Do not operate special tool 2 344 011 with an impact screwdriver.

Courtesy of BMW OF NORTH AMERICA, INC.
Degrease the contact surfaces with the universal cleaner.
In the event of grease residues in the area of the wheel bolt holes, remove and clean the brake disk.
Remove dirt, grease residues and corrosion from the contact surface with a drill and the special tool 2 344 011 .
Do not operate special tool 2 344 011 with an impact screwdriver.
Degrease the contact surfaces with the universal cleaner.

Courtesy of BMW OF NORTH AMERICA, INC.
Check if the mounting bolt (1) has been fitted correctly for the brake disk.

The mounting bolt (1) for the brake disk cannot protrude on the contact surface (2) between the brake disk and the rim.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Do not grease the wheel hubs and wheel centering in models G80, G82 and G83.

Lightly grease the wheel centering (1) in the rim.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

NOTE: TECHNICAL INFORMATION
Do not grease the wheel hubs and wheel centering in models G80, G82 and G83.

Apply a thin layer of grease to the front and rear wheel hubs (1) to protect against corrosion.

Courtesy of BMW OF NORTH AMERICA, INC.

CONSUMABLE SPECIFICATIONS

Brake block paste * TU = Trade Unit. TU numbers cannot be ordered! For invoicing purposes only.	3 g, Bag	83192158851
	100 g, Tube	83192158852
	5 g, TU*	83230140233

NOTE: TECHNICAL INFORMATION
A wheel lifter is recommended for easier wheel removal and installation without exertion.

In vehicles with M Carbon ceramic brake: The wheel lifter must be used to install the wheel.
This process is intended to prevent damage to the brake disc.

Courtesy of BMW OF NORTH AMERICA, INC.
Check lug bolts for wear.

Courtesy of BMW OF NORTH AMERICA, INC.

Result

» Spots (> 30%) of the bearing surface (1) of the taper on the screw head show silvery wear.

Measure

Replace lug bolts.

NOTE: TECHNICAL INFORMATION
Never use an impact screwdriver or electric screwdriver to apply and tighten the lug bolts.
The rim must rest evenly against the brake disc.
In the case of non-original BMW lug bolts/wheel rims, it may be necessary to retighten the lug bolts on user account of setting properties (refer to the documentation from the manufacturer).
Do not apply oil to new lug bolts.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the corroded lug bolts (arrows).
Clean wheel bolts (arrows).
Check lug bolts (arrows) and threads for damage, replace lug bolts (arrows) if necessary.

Join and tighten the lug bolts (arrows).

TIGHTENING TORQUE SPECIFICATIONS

Lug bolts
M14/SW17 Screw in lug bolts and evenly tighten crosswise by hand in order to center the wheel rim. Tighten lug bolts to the prescribed tightening torque with a calibrated torque wrench in a crosswise sequence. Check all the lug bolts in the same order or retighten to the prescribed tightening torque again.	tightening torque	140 Nm
	Check	140 Nm

Detach the special tool 0 490 567 (11 0 020) from the engine mounting brackets.

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: TECHNICAL INFORMATION
Conduct the following operation with the assistance of a second person.

Remove the engine bridge (1) using the special tool 0 490 567 (11 0 020) with the assistance of a support person.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten the screws in the areas (1).

Courtesy of BMW OF NORTH AMERICA, INC.

TIGHTENING TORQUE SPECIFICATIONS

Top rear cross connection
M8x30 screw	tightening torque	19 Nm

TIGHTENING TORQUE SPECIFICATIONS

Top rear cross connection
Torx screw M8x30	tightening torque	19 Nm
Hexagon screw M8x20	tightening torque	19 Nm

Install the hood seal on the side (2).
Install the expanding rivets (3).
Install the wiring harness mounting (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the hood seal on the side (1).
Install the expanding rivets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install the side panel seal.
Install the Bowden cables (3) out of the side panel sealing.
Install clips (2).
Install the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Install the sealing (2) of the side panel.
Install the lid (1) of the washer fluid reservoir downwards.

Courtesy of BMW OF NORTH AMERICA, INC.
Install clips (2).
Install the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Position heat shield.
Clip in the wiring harness mounting (1) at the heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:

Position the holder of gasoline particulate sensor (2) with the gasoline particulate sensor (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate sensor to holder of cylinder bank 1
Plastic screw 6x18	Tightening torque	5.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:

Position the holder (2) of the gasoline particulate sensor (1).

Tighten the screws (3).

TIGHTENING TORQUE SPECIFICATIONS

Engine wiring harness of transmission module to holder for expansion tank
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:

Position the gasoline particulate sensor holder (2) with the gasoline particulate sensor (2).

Tighten down screw (1).

TIGHTENING TORQUE SPECIFICATIONS

Gasoline particulate sensor to coolant expansion tank
M6x20 screw	Tightening torque	8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Version with a gasoline particulate filter:
Push rear hood seal (2) into the guide.

Feed in cable (1) into the holders.

Check the seal for the rear hood (2) and the cable (1) for the correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.
Version with a gasoline particulate filter:
Clip the cable (1) of the lambda oxygen sensor into the holder.

Clip in the wiring harness (2).

Clip in the intake pipe (3).

Clip the cable of the Lambda oxygen sensor into the bracket (4).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the wiring harness mounting (1) at the heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.
Feed the connector (2) of the Lambda oxygen sensor through.
Connect and lock the engine ventilation line to the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable of the lambda oxygen sensor from the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Hose clamp

Install bellows (2).

TIGHTENING TORQUE SPECIFICATIONS

Tightening torques
Hose clamp	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the cable from the Lambda oxygen sensor on the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Install the lid (1) of the washer fluid reservoir downwards.
Remove the side panel seal.

Courtesy of BMW OF NORTH AMERICA, INC.
Install clips (2).
Install the expanding rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Feed the connector (2) of the Lambda oxygen sensor through.
Connect and lock the engine ventilation line to the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable from the Lambda oxygen sensor on the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the wiring harness mounting (1) at the heat shield.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed the connector (2) of the Lambda oxygen sensor through.
Connect and lock the engine ventilation line to the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable from the Lambda oxygen sensor on the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect connectors (1) and lock.

Courtesy of BMW OF NORTH AMERICA, INC.

Install bellows (2).

Tighten hose clamp (1).

TIGHTENING TORQUE SPECIFICATIONS

Hose clamp
Hose clamp	Tightening torque	3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Connect and lock the engine ventilation line to the retaining clip in the region of (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip in the cable from the Lambda oxygen sensor on the holder (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Clip the connector (2) downwards into the heat shield.
Clip the transmission wiring harness on to the bracket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Support bridge
M6x16 screw	Tightening torque	10 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

Clip in the wiring harness from the attachment points (2).
Working downwards, clip in the engine ventilation line (1).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the wiring harness mounting to the snap-in lug (1) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Coolant reservoir
M6x20 screw	Tightening torque	11 Nm

Clip in the coolant line to the bracket in the region (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the coolant line (1) to the coolant expansion tank (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the coolant line (1) to the coolant expansion tank (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.
Connect the coolant line (1) to the coolant expansion tank (2) and lock it.

Courtesy of BMW OF NORTH AMERICA, INC.
Use clamping pliers to remove the coolant hoses (1) from the coolant expansion tank (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect connectors (1) and lock.
Clip the wiring harness into the wiring harness mounting (2).

Courtesy of BMW OF NORTH AMERICA, INC.
Close the sealing cap (1) of the coolant expansion tank.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to INSTALLING THE CONTROL UNIT BRACKET FOR CYLINDERS 5 TO 8 .
Refer to INSTALLING THE COVER OF THE LEFT DME CONTROL UNIT .
Refer to INSTALLING ACOUSTIC COVER .
Refer to INSTALLING THE REAR RIGHT ENGINE COMPARTMENT COVER .
Refer to INSTALLING THE COVER OF THE ENGINE COMPARTMENT ON THE REAR LEFT .
Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
Refer to TAKING HOOD OUT OF THE SERVICE POSITION .
Refer to FILLING AND VENTING THE HIGH-TEMPERATURE COOLANT CIRCUIT .
Refer to CONNECTING ALL BATTERY GROUND LEADS .
