Take hood out of the service position

CAUTION: Shutting hood or trunk lid.
Injury hazard!

• Support hood/trunk lid in fully open position with the aid of a suitable device.

• Support the hood by hand.

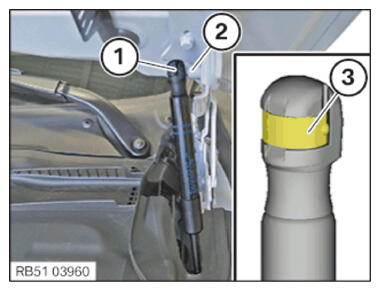

• Remove the special tool (3) from the ball hub (2). Detach the special tool (3) from the gas pressure spring (1).
• Continue to support the hood and repeat the operation on the other side of vehicle.

  Courtesy of BMW OF NORTH AMERICA, INC.

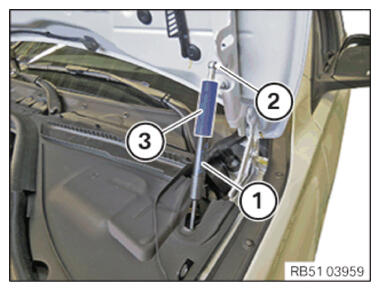

• Check the clamp (3) is fitted correctly.
• Connect ball socket (1) to ball pin (2).
• Continue to support the hood and repeat the operation on the other side of vehicle.

Courtesy of BMW OF NORTH AMERICA, INC.
