Install door lock

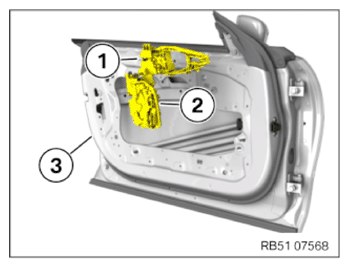

• Insert the outside door handle support (1) with the door lock (2) in the door (3).

  Make sure that the seal of the door lock (2) is not damaged.

  Courtesy of BMW OF NORTH AMERICA, INC.

• On equipment specification with soft-close automatic:

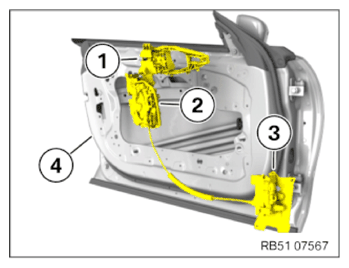

• Insert outside door handle support (1) with the door lock (2) and soft-close automatic (3) in the door (4).

  Make sure that the seal of the door lock (2) is not damaged.

  Courtesy of BMW OF NORTH AMERICA, INC.

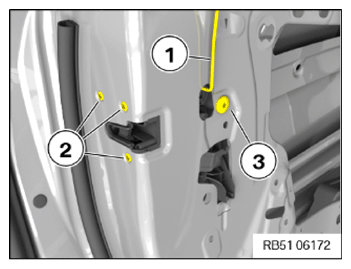

• Tighten screws (2) and (3) a few turns.
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Door lock to door
  	Tightening torque	8.8 Nm

• Tighten down screw (3).
  TIGHTENING TORQUES SPECIFICATION



  Door lock to door
  screw	Tightening torque	8.8 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

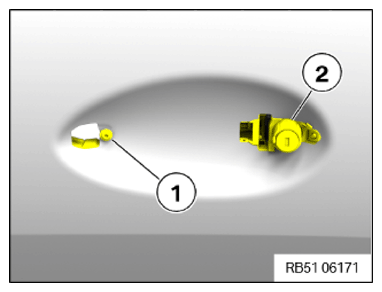

• Clip in locking rod (1).
• Insert outside door handle support (2) and position correctly.
• Tighten down screw (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

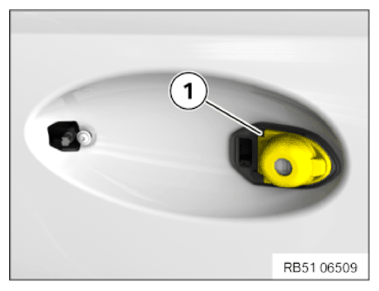

• Install the seal (1) for the external door handle.

  Courtesy of BMW OF NORTH AMERICA, INC.

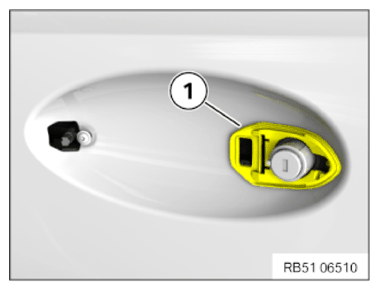

• Install cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

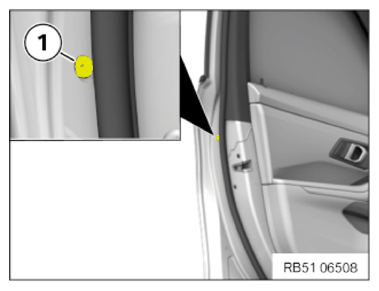

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Equipment specification with soft-close automatic function for doors: installing soft-close automatic function for doors

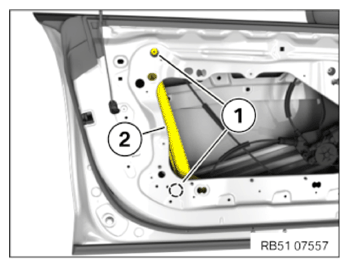

• Clip Bowden cable (1) into holder (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

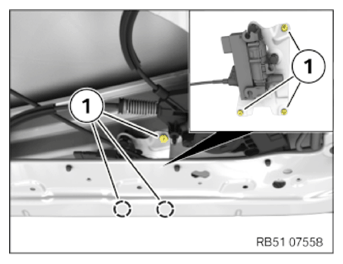

• Tighten down screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

• On equipment specification with soft-close automatic:

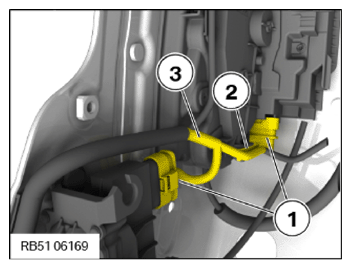

• Connect and lock the plug connections (1).
• Clip in wiring harness (3) with the clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

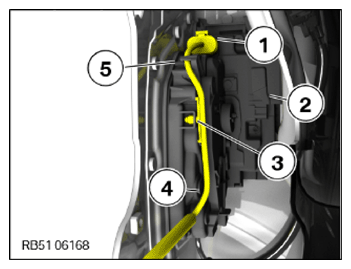

• Connect the connector (1) to the door lock (2) and lock it.
• Insert wiring harness (4) in the guide (5) and clip in the clip (3).

  Courtesy of BMW OF NORTH AMERICA, INC.

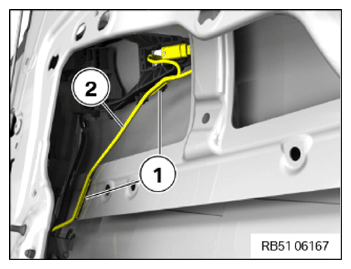

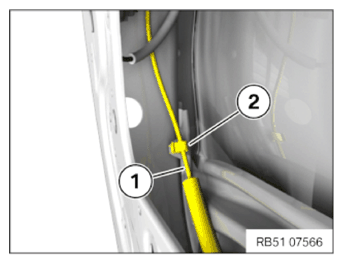

• Clip in wiring harness (2) with the clips (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Correctly position power windows (2).
• Tighten nuts (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

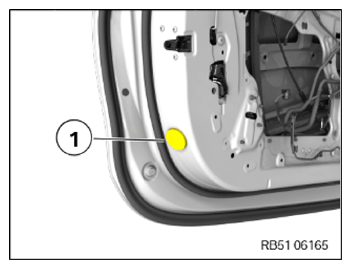

• Install the plug (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FRONT OUTSIDE DOOR HANDLE .
• Refer to PARTIALLY INSTALLING REAR INNER WINDOW CHANNEL STRIP .
• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE FRONT MODULE BRACKET .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER FRONT WINDOW CHANNEL STRIP .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
