Installing front door window glass
NOTE:
TECHNICAL INFORMATION
Notes on power window initialization must be strictly observed for these repair instructions.
Additional information, see NOTES ON INITIALIZING POWER WINDOWS .
Notes on power window initialization must be strictly observed for these repair instructions.
Additional information, see NOTES ON INITIALIZING POWER WINDOWS .
NOTE:
To provide a better overview: Schematic diagram with partially hidden components.

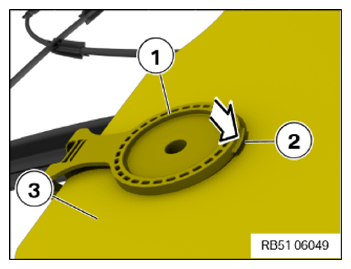

- Feed in the front door window glass (3) from the top.
- Press the holder (1) on the lug (2) in arrow direction and lock.

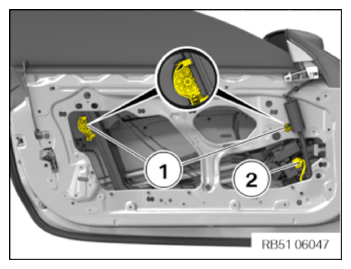

- Insert screws (1) (to the left) and bring into position.
The side washer must remain free to move.
- Connect connectors (2) and lock.
Follow-up work
- Refer to INSTALLING THE FRONT MODULE BRACKET .
- Refer to CONNECTING ALL BATTERY GROUND LEADS .
- Refer to ADJUSTING DOOR WINDOW GLASS .
- Refer to INSTALLING FRONT DOOR TRIM PANEL .
- Refer to INSTALLING THE OUTER FRONT WINDOW CHANNEL STRIP .
- Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
