Installing the servomotor

• Check the O-ring (1) and replace if necessary.
• Coat the O-ring (1) with final drive oil.

  Courtesy of BMW OF NORTH AMERICA, INC.

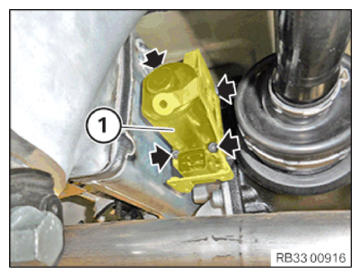

• Feed in and position the servomotor (1) with the holder.
• Tighten screws (arrows).
  TIGHTENING TORQUES SPECIFICATION



  Servomotor on rear axle differential
  M6	tightening torque	9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to CONNECTING THE CONNECTOR TO THE SERVOMOTOR OF THE REAR DIFFERENTIAL .
• Refer to INSTALLING THE COVER OF THE RIGHT CAMBER CONTROL ARM .
• Refer to FOR REPLACEMENT (BEVEL GEARS OR SERVOMOTOR): CARRYING OUT THE "DELETE WEAR DATA" SERVICE FUNCTION .
