Install the cover of the right camber control arm
Install the cover of the camber control arm

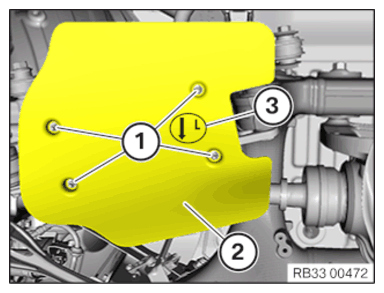

- Correctly position the cover of the camber link (2) on the camber link. Note the direction of installation while doing so.
The arrow (3) must point in the driving direction.
- Replace nuts (1).
Parts: Nuts
- Tighten the screws or the nuts (1).
TIGHTENING TORQUES SPECIFICATION
| Cover to camber control arm | ||
|---|---|---|
| M6 Replace nuts. |
tightening torque | 6 Nm |
