Connecting the connector to the servomotor of the rear axle differential

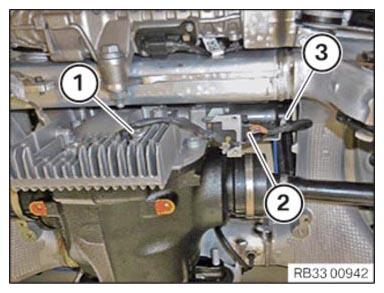

• Attach the cable on the holder (3).
• Connect and lock all connectors (1) and (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

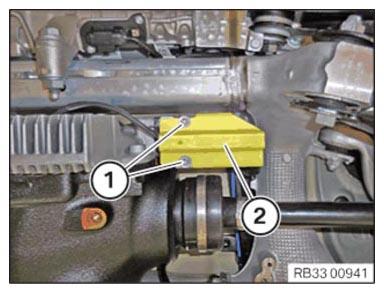

• Secure the cable to the heat shield (2) and position the heat shield (2).
• Tighten down screws (1).

TIGHTENING TORQUES SPECIFICATION

Heat shield to servomotor holder
M5	tightening torque	4.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
