Install the front power window regulator

• The window shaft gage cannot be adjusted.

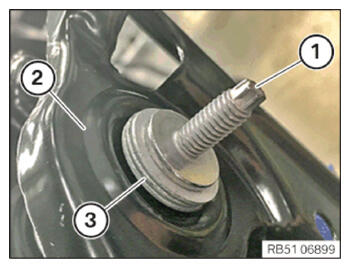

• Check for a tight fit of the threaded bolts (1) at the power window (2) and tighten if necessary.

  The washers (3) must be firmly in place and correctly aligned with the window regulator (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

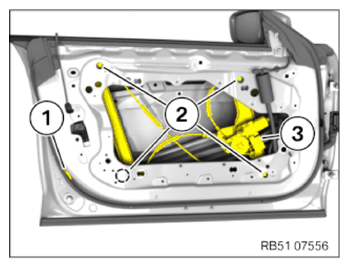

• Feed in the power window regulator (3) through the door aperture.
• Tighten nuts (2).
• Install the plug (1).
  NOTE: Only install the plug once the side window glass has been adjusted.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE FLAT MOTOR FOR THE FRONT POWER WINDOWS .
• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE FRONT MODULE BRACKET .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER FRONT WINDOW CHANNEL STRIP .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
