Align the spring strut and the spring strut support bearing with each other

CAUTION: Laser beam .
Injury hazard!

Do not look into the laser beam.

NOTE: TECHNICAL INFORMATION
Laser class 2 according to standard EN60825-1 (1994) P ≤ 1 mW

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

During the installation, it is absolutely necessary to align the installation position of the spring strut with the installation position of the spring strut support bearing with the special tools 2 210 778 and 2 450 246 .
This ensures a defined pre-tension at the screw connection of the spring strut fork at the bottom wishbone.

Courtesy of BMW OF NORTH AMERICA, INC.

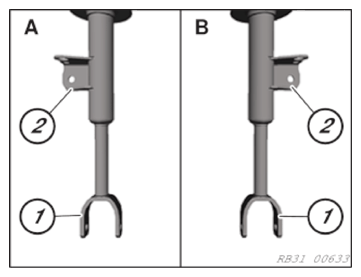

Observe the alignment of the spring strut fork (1).
Left spring strut (Figure A): Stand for the anti-roll bar link (2) points from the top to the left.

Right spring strut (Figure B): Stand for the anti-roll bar link (2) points from the top to the right.

Courtesy of BMW OF NORTH AMERICA, INC.

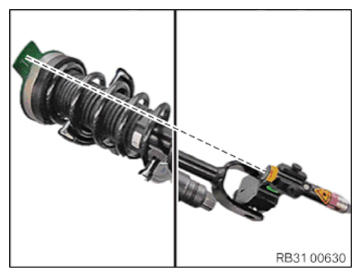

Mount the laser (1) with the securing tool on the spring strut holder from the top.
Place the mirror (2) vertical onto the spring strut!
It is (2) absolutely necessary to set the mirror onto a clean level surface!
Do not position the mirror (2) on labels or spot-welds!

The laser beam must face the mirror.
Adjust the laser (1) with the adjustment screw (3) to project the laser beam via the mirror (2) to the mark (4).
Remove the mirror (2).
The laser (1) can now no longer be adjusted (3) at the adjustment screw!
Mount the 3 bolts to a special tool 2 450 246 (1).

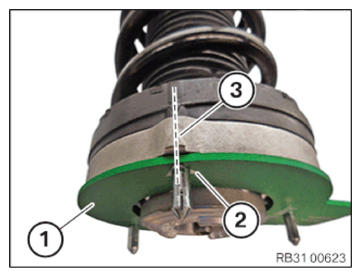

Align mark (2) on the special tool 2 450 246 (1) to mark (3) on the spring strut support bearing.
Attach special tool 2 450 246 (1) on the spring strut support bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.
Left spring strut:

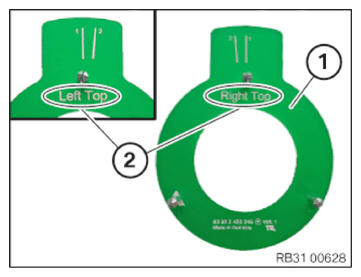

The (2) "Left Top" mark can now be read from the top on the special tool 2 450 246 (1)!
Right spring strut:
The (2) "Right Top" mark can now be read from the top on the special tool 2 450 246 (1)!

Courtesy of BMW OF NORTH AMERICA, INC.

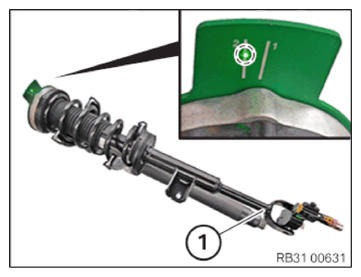

Align spring strut (1) with the mark on special tool 2 450 246 on the spring strut support bearing using a laser beam.
Mark on the shim:
- 1 = G16
- 2 = G14/G15
Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

Refer to RELIEVING TENSIONING ON COIL SPRING .
Refer to INSTALLING THE SPRING STRUT .
Refer to ATTACHING THE FRONT SPRING STRUT .
Refer to SECURING THE SPRING STRUT TO THE BOTTOM WISHBONE .
Refer to ATTACHING THE ANTI-ROLL BAR LINK TO THE SPRING STRUT .
Refer to FASTENING THE WISHBONE TO THE TOP OF THE SWIVEL BEARING .
Refer to REMOVING THE TOP SWIVEL BEARING ATTACHMENT .
Refer to INSTALLING FRONT LEFT OR RIGHT WHEEL .
Refer to INSTALLING THE COVER IN THE ENGINE COMPARTMENT AT THE REAR LEFT OR RIGHT .
