Secure the spring strut to the bottom wishbone

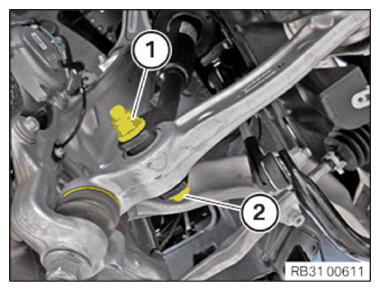

- Position the spring strut on the bottom of the wishbone.
- Replace screw (2) and nut (1).
Parts: Bolt, nut
- Insert the screw (2).
- Tighten nut (1).TIGHTENING TORQUE SPECIFICATIONS
Lower wishbone to spring strut clevis M14
Replace screw and nut.
Tighten inNORMAL POSITION .Joining torque 165 Nm Angle of rotation 90°
