Fastening the wishbone to the top of the swivel bearing
Fastening the wishbone to the top of the swivel bearing

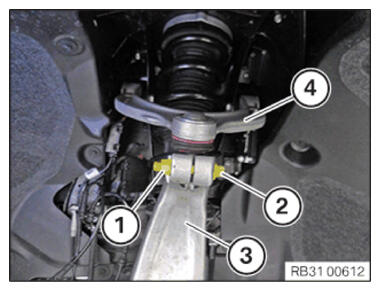

Position the wishbone pin (4) in the bore of the swivel bearing (3).
Replace screw (2) and nut (1).
Parts:
Bolt, nut
Install the bolt (2).
Tighten nut (1).
TIGHTENING TORQUE SPECIFICATIONS
Upper wishbone to swivel bearing
M10
Replace screw and nut.
Tightening torque
56 Nm
