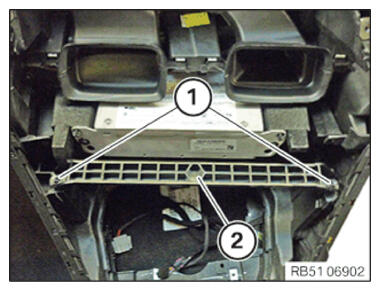

Installing holder in the center console

• Feed in and position holder (2).
• Tighten down screws (1).

TIGHTENING TORQUE SPECIFICATIONS

Center console
Fillister head bolt	tightening torque	2.3 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
