Installing auxiliary coolant pump for the turbocharger
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2025 BMW X4, 2024 BMW X4, 2023 BMW X4, 2022 BMW X4, and 2021 BMW X4. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
TECHNICAL INFORMATION
Make sure that the connections are locked correctly. The locks must engage audibly.
Make sure that the connections are locked correctly. The locks must engage audibly.

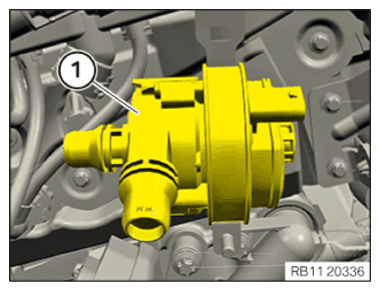

- Thread in the auxiliary coolant pump (1) and install.

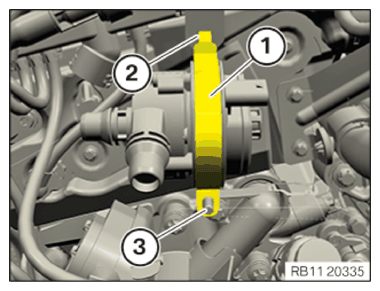

- Position the holders (1) in guides (2) and (3).

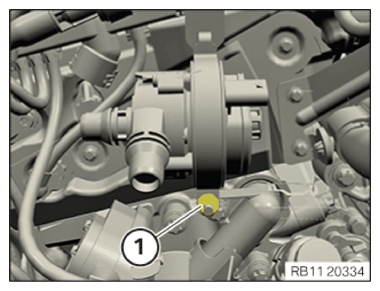

- Tighten nut (1).

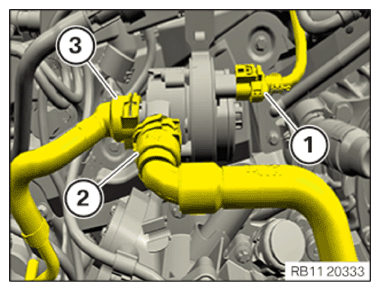

- Connect and lock the connector (1).
- The connector (1) must engage audibly.
- Connect and lock coolant line (2). Connect and lock coolant line (3).
- Make sure that you can hear coolant lines (2) and (3) engage.
Follow-up work
- Refer to INSTALLING THE ACOUSTIC COVER FOR THE ENGINE AT THE FRONT .
- Refer to INSTALLING CHARGE AIR LINE .
- Refer to INSTALLING CLEAN AIR PIPE .
- Refer to INSTALLING RESONATOR .
- Refer to INSTALLING ACOUSTIC COVER .
- Refer to CONNECTING THE COOLANT LINE TO THE RADIATOR .
- Refer to INSTALLING THE FRONT BOTTOM RIGHT WHEEL ARCH COVER .
- Refer to INSTALLING THE CENTER UNDERBODY PROTECTION .
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to FILLING THE HIGH-TEMPERATURE COOLING SYSTEM WITH THE VACUUM FILLING EQUIPMENT .
- Refer to VENTING THE HIGH-TEMPERATURE COOLANT SYSTEM .
