Installing acoustic cover

NOTE: RISK OF DAMAGE
Damage to the acoustic cover/design cover .
Jerky movements during disassembly and application of excessive force during installation may result in breakage of the acoustic cover/design cover .

Disassemble or mount the acoustic cover/design cover carefully.
Disassemble or mount snap-lock couplings of the ball pivots one after the other.
Disassemble or mount the acoustic cover/design cover only at temperatures > 20°C.
Use only distilled water as an auxiliary material during installation, no lubricants.

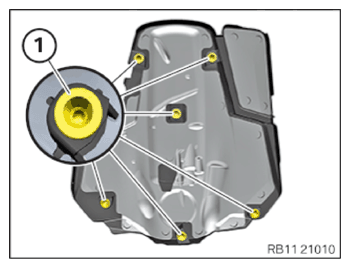

Check the rubber mount (1) for a correct seat of the acoustic cover.

Courtesy of BMW OF NORTH AMERICA, INC.

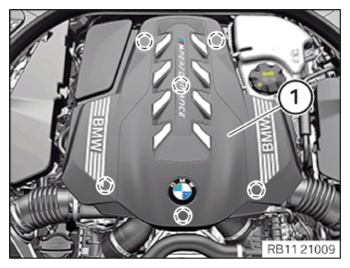

Install the acoustic cover (1) and fasten it in the rubber mounts (marks).

Courtesy of BMW OF NORTH AMERICA, INC.
Version with clip:

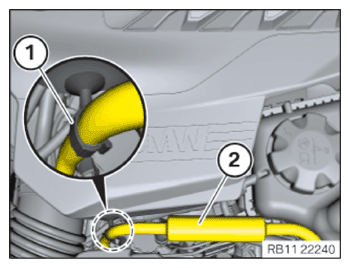

Clip in the tank vent line (2) into the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.
