Install the trim panel for the storage shelf

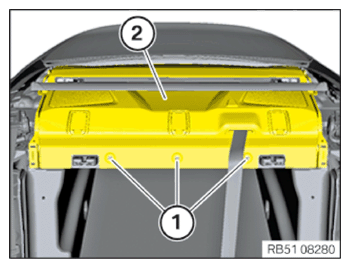

• Install the trim panel for the rear shelf (2) and feed in the safety belt.
• Connect existing plug connections.
• Feed in the trim panel for the rear shelf (2) at the rear guides and position it correctly.
• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

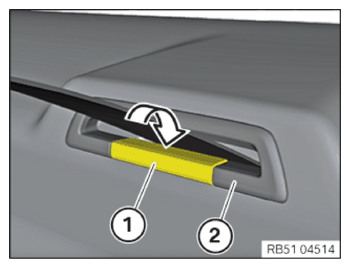

• Insert the seat belt finisher strip (2).
• Clip in the cover (1) in the arrow direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

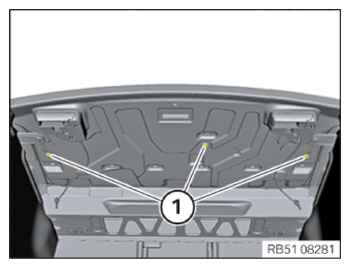

• Tighten the screws (1) on the roller sunblind from the cargo area.

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE C-PILLAR TRIM PANEL ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE LEFT AND RIGHT SEAT BELT FINISHER STRIP .
• Refer to INSTALLING BOTH BACKREST SIDE SECTIONS .
