Installing Bowden cable external door handle

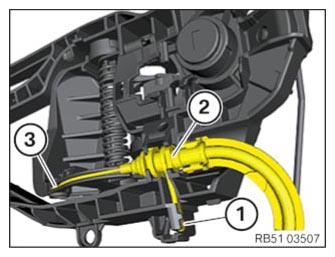

• Attach the Bowden cable nipple (2)  on the door lock (3)  .
• Attach Bowden cable (1)  to the door lock (3)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

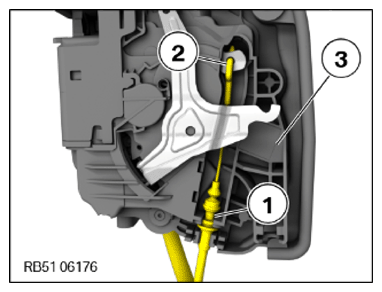

• Attach the Bowden cable nipple (3)  .
• Attach the Bowden cable (2)  .
• Twist and lock the lug (1)  .

  Courtesy of BMW OF NORTH AMERICA, INC.

• Attach the linkage (1)  in the door lock (2)  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING DOOR LOCK .
• Refer to INSTALLING THE FRONT OUTSIDE DOOR HANDLE .
• Refer to PARTIALLY INSTALLING REAR INNER WINDOW CHANNEL STRIP .
• Refer to INSTALLING FRONT DOOR WINDOW GLASS .
• Refer to INSTALLING THE FRONT MODULE BRACKET .
• Refer to CONNECTING ALL BATTERY GROUND LEADS .
• Refer to ADJUSTING DOOR WINDOW GLASS .
• Refer to INSTALLING FRONT DOOR TRIM PANEL .
• Refer to INSTALLING THE OUTER FRONT WINDOW CHANNEL STRIP .
• Refer to ACTIVATING THE 48 V ELECTRICAL SYSTEM .
