Install the front outside door handle

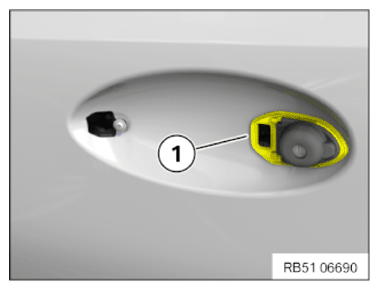

• Check seal (1) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

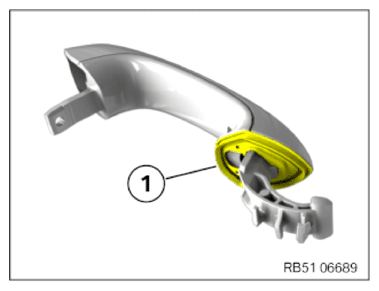

• Check seal (1) for damage, replace if necessary.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the front external door handle (2) at the front and connect all available plug connections (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed in the front external door handle (1) at the back.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten the clamping bolt (1) on the outside door handle support with the special tool 2 450 364  .

Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to PARTIALLY INSTALLING REAR INNER WINDOW CHANNEL STRIP .
