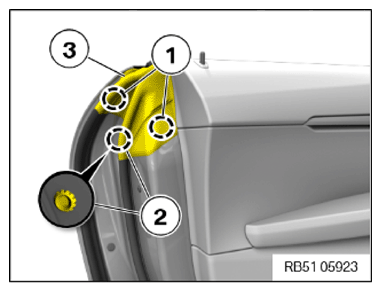

Partially installing rear inner window channel strip

NOTE: Schematic diagram is for example purposes. Some parts may differ in certain details.

• Clip in the clip (2) of the rear inner window channel strip (3).
• Clip in clips (1).
