Install support for bumper cover at front bottom
NOTE:
Perform the steps on the right and left side.

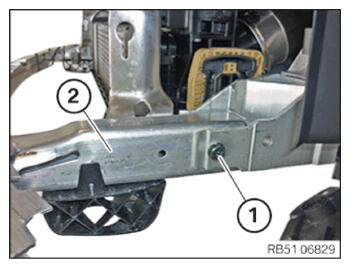

- Install the support for the front bottom bumper cover (2).
- Tighten down screw (1).
TIGHTENING TORQUES SPECIFICATION
| Deformation element, bottom to front axle support, | ||
|---|---|---|
| Hexagon screw M8x75 |
Tightening torque | 19 Nm |

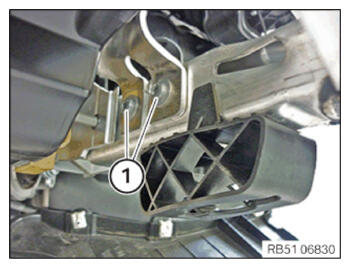

- Tighten down screws (1).
TIGHTENING TORQUES SPECIFICATION
| Vertical connection to deformation element | ||
|---|---|---|
| Flat-head screw M6x20 |
Tightening torque | 12 Nm |
Follow-up work
- Refer to INSTALLING FRONT UNDERBODY PROTECTION .
- Refer to INSTALLING LEFT AND RIGHT BRAKE VENTILATION DUCT .
- Refer to INSTALLING THE BOTTOM AUTOMATIC AIR FLAP CONTROL .
- Refer to INSTALLING FRONT BUMPER COVER .
- Refer to PARTIALLY INSTALLING THE TEMPERATURE SENSOR .
- Refer to PARTIALLY INSTALLING BOTH FRONT WHEEL ARCH COVERS .
- Refer to INSTALLING CENTER RADIATOR GRILLE .
- Refer to INSTALLING THE CENTER ENGINE COMPARTMENT COVER .
- Refer to ADJUSTING THE FRONT RADAR SENSOR (FRS) .
