Install left and right brake ventilation duct
Install left and right brake ventilation duct
NOTE:
Perform the steps on the right and left side.
Install the brake ventilation duct
Guide the brake ventilation duct (2) into the wheel arch cover.
Tighten down screw (1).
TIGHTENING TORQUE SPECIFICATIONS
Wheel arch cover (screws)
Thermoplastic hexagon screw
Tightening torque
3 Nm
Courtesy of BMW OF NORTH AMERICA, INC.
NOTE:
Description is for left component only. Procedure on the right side is identical.

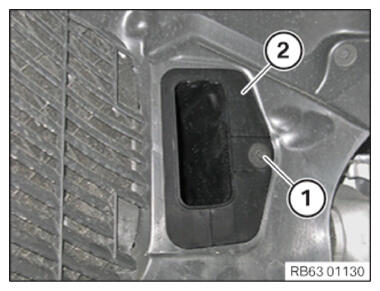

Install the brake ventilation duct
Attach the brake ventilation duct (2).
Mount the expanding rivets (1).
Courtesy of BMW OF NORTH AMERICA, INC.
