Partly installing both front wheel arch covers
NOTE:
Description is for left component only. Procedure on the right side is identical.
Partially installing the front wheel arch cover
NOTE:

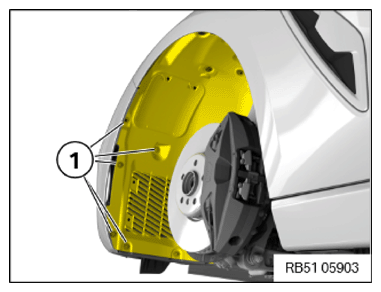

To provide a better overview: Schematic diagram with partially hidden components.
- Fold back front wheel arch trim panel.
- Tighten down screws (1).
TIGHTENING TORQUE SPECIFICATIONS
| Wheel arch trim panel at front on body | ||
|---|---|---|
| Thermoplastic hexagon screw | Tightening torque | 3 Nm |
