Install Trunk Lid (For Replacement)

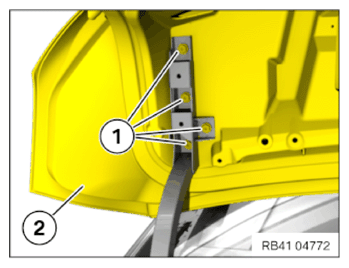

• Position tailgate (2) on the tailgate hinge and hand-tighten all the screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

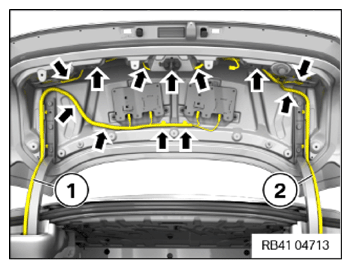

• Clip in the vehicle wiring harnesses (1) and (2) with all holders (arrows).
• Connect all connectors of the wiring harnesses (1) and (2) and lock them.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.
• Thread the wiring harness (2) into the trunk lid and insert the rubber grommet (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

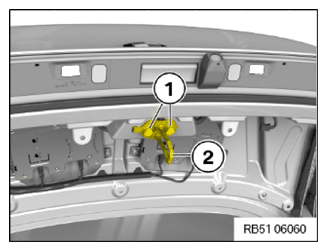

  If installed: Installing acoustic sensor

• Connect connector of acoustic sensor (2) and lock.
• Insert acoustic sensor (2) into the tailgate and lock with the latch mechanisms (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjusting the tailgate

  Check

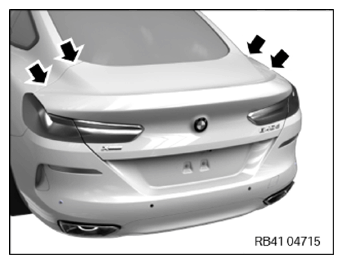

• Check the gap dimensions (arrows) between the rear side panels and trunk lid.
  TECHNICAL DATA SPECIFICATION



  Gap dimension rear quarter panel to trunk lid
  1 rear quarter panel; 2 trunk lid	a  3.8 +1.2-1.2 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b  0.8 +1.4-1.4 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » Gap dimensions between the rear side panels and trunk lid do not meet the specifications.

  Measure

  • Adjust the tailgate on the tailgate hinge.

  Remove striker for the tailgate latch

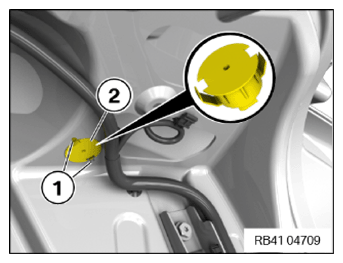

• Loosen screws (1).
• Remove striker for the tailgate latch (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the left and right side.

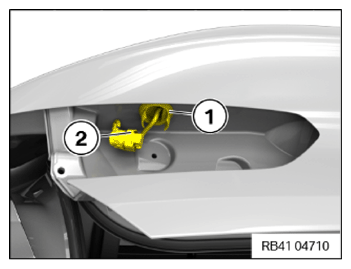

• Slacken all screws (1) until the tailgate (2) can be moved.
• Slide trunk lid (2) in longitudinal direction and to the side until the trunk lid (2) has the specified gap dimension to the side panel.
• Tighten all screws (1) at the tailgate (2).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate hinge on trunk lid
  Hexagon screw, M8 x18
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Install striker for the tailgate latch

• Position striker for the tailgate latch (2) and tighten the screws (1).
  TIGHTENING TORQUES SPECIFICATION



  Striker to rear lid
  Hexagon screw M8x20
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Adjust the lower part of the tailgate lock lower section

  Check

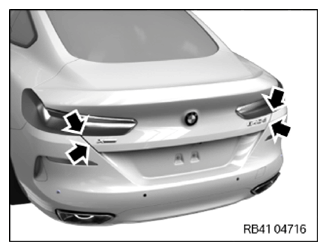

• Check the gap dimensions (arrows) between the trunk lid and rear bumper cover.
  TECHNICAL DATA SPECIFICATION



  Gap dimension trunk lid to rear bumper panel
  1 trunk lid; 2 rear bumper panel	a  4.3 +1.5-1.5 mm
  Courtesy of BMW OF NORTH AMERICA, INC.	b  0.4 +1.7-1.7 mm

  Courtesy of BMW OF NORTH AMERICA, INC.

  Result

  » The gap dimensions between the trunk lid and the read bumper cover do not meet the specifications.

  Measure

  • Adjust the lower part of the tailgate lock.

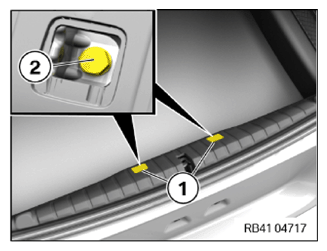

• Lever out the covers (1) with a suitable screwdriver and remove.
• Loosen screws (2) until the tailgate lock can be shifted.
• Adjust tailgate lock so that the tailgate has the predefined gap dimension relative to the rear bumper panel.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Tailgate lock to body
  Hexagon screw M8x20
  	Tightening torque	19 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Clip in the covers (1).

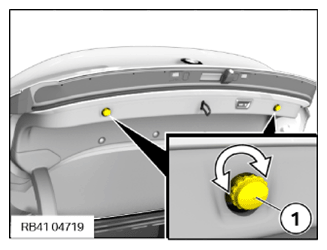

• Adjust the stop pad (1) of the trunk lid by twisting it.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to ATTACHING REAR MODEL DESIGNATION .
• Refer to FITTING THE EMBLEM AT THE REAR .
• Refer to INSTALLING THE MULTIBAND ANTENNA .
• Refer to INSTALLING THE TRUNK LID HANDLE .
• Refer to INSTALLING THE TAIL LIGHT ON THE TAILGATE ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE WATER SUPPLY TO THE REAR LEFT AND RIGHT LIGHT .
• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to ATTACHING THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to INSTALL THE POWER TAILGATE SWITCH .
