Attaching the trim panel for the tailgate hinge on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.

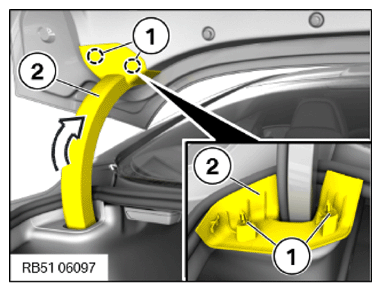

Secure the trim panel for the hinge of the trunk lid
- Shift the trim panel for the hinge of the trunk lid (2) in the direction of the arrow and position.
- Clip in clips (1).
Courtesy of BMW OF NORTH AMERICA, INC.
|
