Installing the multiband antenna

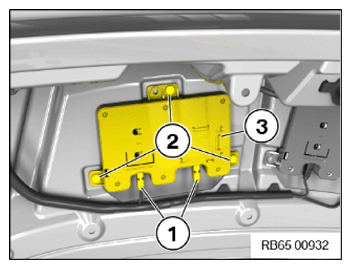

• Position multiband antenna (3).
• Tighten down screws (2).
  TIGHTENING TORQUES SPECIFICATION



  Multi-frequency antenna on the tailgate
  Oval-head screw for thermoplastic	tightening torque	3 Nm

• Connect connectors (1) and lock.

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work

• Refer to INSTALLING THE TAILGATE TRIM PANEL .
• Refer to ATTACHING THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT .
• Refer to INSTALLING THE POWER TAILGATE SWITCH .
• Refer to INSTALLING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
