Removing The Trunk Lid

Preliminary work

• Refer to REMOVE THE POWER TAILGATE SWITCH .
• Refer to REMOVING TRUNK COMPARTMENT LIGHT ON TRUNK LID .
• Refer to PARTIAL REMOVAL OF THE TRIM PANEL FOR THE TAILGATE HINGE ON THE LEFT AND RIGHT .
• Refer to REMOVE TAILGATE TRIM PANEL .
• Refer to REMOVING THE WATER SUPPLY AT THE TAIL LIGHT ON THE LEFT AND RIGHT .
• Refer to REMOVING TAIL LIGHT ON TAILGATE AT LEFT AND RIGHT .

If installed: Removing buzzer

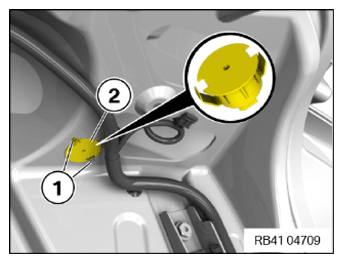

• Push the detents (1) together and remove the buzzer (2).
• Disconnect the associated plug connection and remove the buzzer (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

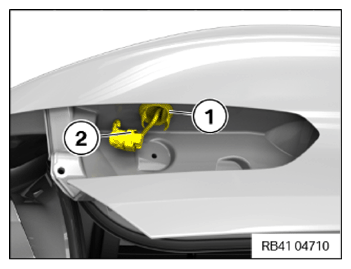

• Release rubber grommet (1) and feed out the wiring harness (2) inwards from the trunk lid.

  Courtesy of BMW OF NORTH AMERICA, INC.

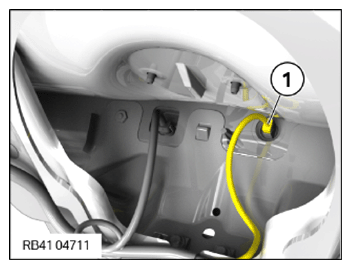

• Disconnect plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

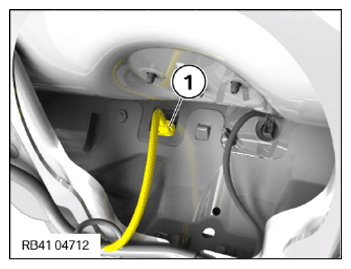

• If installed: Unlock and disconnect the rearview camera plug connection (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Disconnect and unlock all plug connections.

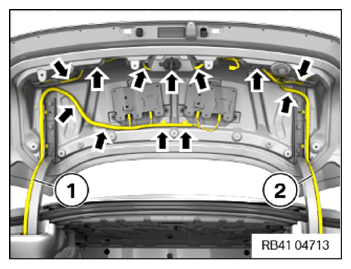

• Release the vehicle wiring harness (1) and (2) with all holders (arrows) and place to one side.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

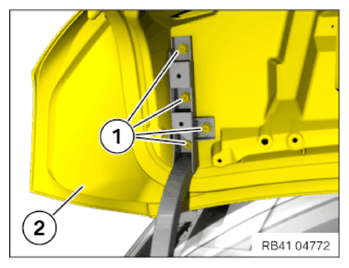

• Release all the screws (1) and carefully remove the tailgate (2) with the help of a support person.

  Courtesy of BMW OF NORTH AMERICA, INC.
