Removing the water supply at the tail light on the left and right
NOTE:
Description is for left component only. Procedure on the right side is identical.
Remove the water guide at the tail light

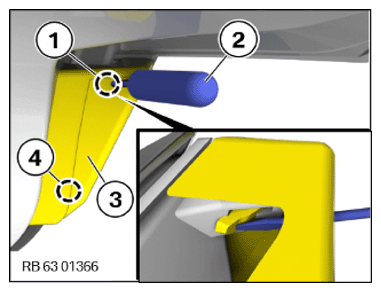

- Unlock the detent (1) of the water guide at the tail light (3) with the aid of a tool (screwdriver) (2).
- Release the water guide at the tail light (3) from the detents (1) and (4) and remove.
